Ultra Thin Types cut-off Wheels (for F series metal cutter)

No.Ultra Thin Type Cut off Wheels for F series metal cutter
Features：
·Extra thin cut-off wheels, offer excellent cutting performance
·Offer precision cutting to expensive materials and difficult-to-cut materials
·Advanced safety with fiber glass reinforcement
·The F cut wheels is best for metal cutter F series

Material Application & Specification:
Designed for use to general steel and stainless steel

Get The Latest Quote
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com
  • Ultra Thin Types cut-off Wheels (for F series metal cutter),fujigrindingwheel.com

  • Description

  • Instruction for Use

  • Cautions

  • Specifications

Cutting Performance Demostration of FUJI F series metal cutter

Advantage:
· Extra thin cut-off wheels
· Offer precision cutting to expensive materials and difficult-to-cut materials
· Take cutting performance to a new level, with ultimate speed and accuracy
· The F cut is best F cutter (dedicated)
 Compatible model and Corresponding Size:
          special cutting machine-F cutter                   F-cutter Compatible model and Corresponding Size Table
 FS-B6/7E/8E/9E   ·   FS-B10E  ·    FS-B30E


Specification & Package:

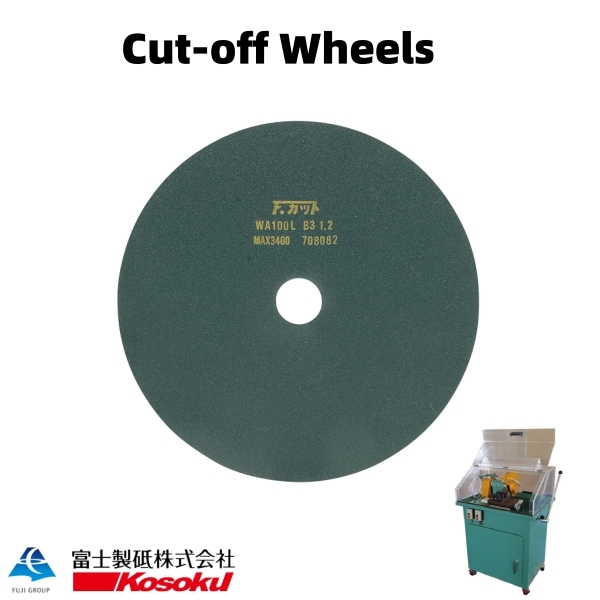

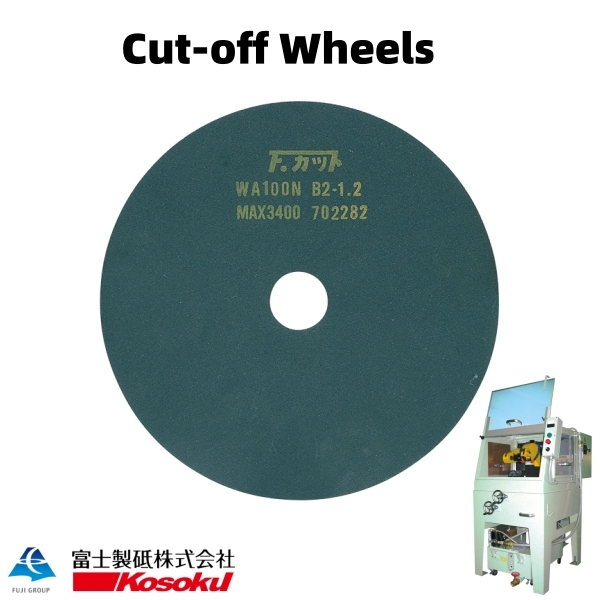

F-CUT

                         F-cut cutting wheels with package                                               F-cut cutting discs and application
                           cut-off wheels application                                                 F-cut cutting discs and application

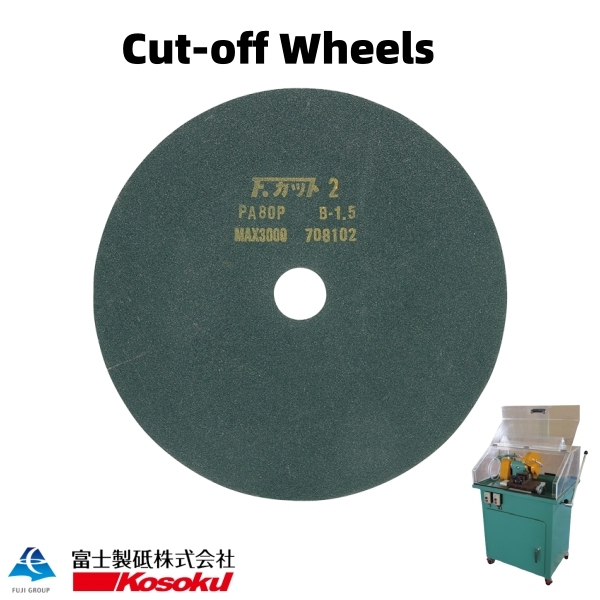

 F-CUT2

                            F-Cut 2 cutting wheels with package                                            F-cut 2 cutting wheels application



An instructional guide on the proper selection of abrasive wheels
    Cautions:
            · Do not exceed maximum R.P.M. marked on the wheels, never use sides of wheels for grinding or polishing, and make sure no chipping and
             no cracks at the edges of wheels.
            · Let the machine be idle for one minute before you start working. The machine must be idle for three minutes after you have changed the wheel.
            · The materials to be cut must be fastened on the machine.
            · Do not alter or change the metal center of the arbor hole if the size does not fit the machines.
            · Always wear face and eye protection.
            · Never remove protection guard from tools or machines.


    Applications of Abrasives & Usage Notes:
                                         Descriptions of marking symbols (abrasives) and their applications                             Usage Note about FUJI Abrasive Wheels

The F cut is best F cutter,  with 3 standard cutting wheels
Compatible Metal Cutter
Models		 Type Corresponding Wheels Size
mm
B-6 WA100N 150x0.8x25.4
B-7E WA100N 180x1.0x25.4
B-8E WA100N 205x1.0x25.4
B-9E PWA100N 255x1.2x31.75
B-10E PWA100N 255x1.2x31.75
B-30E PWA100N 255x1.2x31.75
