For Large Diameter and High Speed Rotation Cut-off Wheels

Name: For Large Diameter and High Speed Rotation Cut-off Wheels
Brand: fujigrindingwheel.com
SKU: For Large Diameter (A Type) and For high speed rotation engine cutter
Availability: InStock
Rating: 5 (1 reviews)

No.For Large Diameter (A Type) and For high speed rotation engine cutter

Features：For Large Diameter and High Speed Rotation Cut-off Wheels
·Designed for aggressive and large cutting applications
·High productivity, provide for cutting wide-range materials
·Advanced safety with fiber glass reinforcement
·Offer excellent fast cutting performance
· Neatly cutting edges, no heat damage to workpiece
Material Application:
General steel: pipes, angle iron, bars, channel steel
Specification:

Get The Latest Quote

Description
Instruction for Use
Cautions
Specifications

FUJI large diameter cut-off wheels for rail track cutting

Rail repair jobs need to be handled quickly and correctly to minimize traffic delay.FUJI large diameter cut-off wheels designed to be durable and fast cutting, can be used for hand-operated cutting, fit on petrol & pneumatic power saws that are mounted on a rail track clamp.

Advantage:
·Designed for aggressive and large cutting applications
·High productivity, provide for cutting wide-range materials
·Advanced safety with fiber glass reinforcement
·Offer excellent cutting performance, with neatly cutting edge
· Fast cut-off ability, even for the hard engine

Specification & Package:
1. For Large Diameter (A Type)

510mm FUJI large diameter cut-off wheels

packing caron of 510mm FUJI large diameter cut-off wheels

Specs. of 510mm FUJI large diameter cut-off wheels

Application: General steel: pipes, angle iron, bars, channel steel

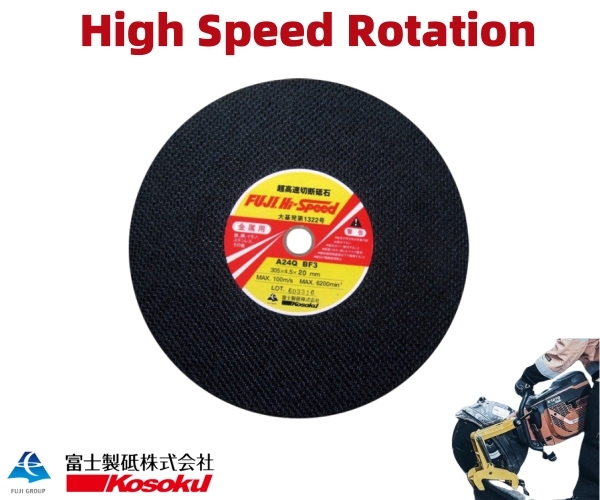

2. For High Speed Rotation (A Type) For Engine Cutter


Application: Iron, steel, cast iron pipe, stainless steel

3. For High Speed Rotation (GC Type) For Engine Cutter

Application: Stone: refractory marble, slate, concrete, cast iron pipe

An instructional guide on the proper selection of abrasive wheels

Cautions:
· Do not exceed maximum R.P.M. marked on the wheels, never use sides of wheels for grinding or polishing, and make sure no chipping and
no cracks at the edges of wheels.
· Let the machine be idle for one minute before you start working. The machine must be idle for three minutes after you have changed the wheel.
· The materials to be cut must be fastened on the machine.
· Do not alter or change the metal center of the arbor hole if the size does not fit the machines.
· Always wear face and eye protection.
· Never remove protection guard from tools or machines.

Applications of Abrasives & Usage Notes:
Descriptions of marking symbols (abrasives) and their applications Usage Note about FUJI Abrasive Wheels

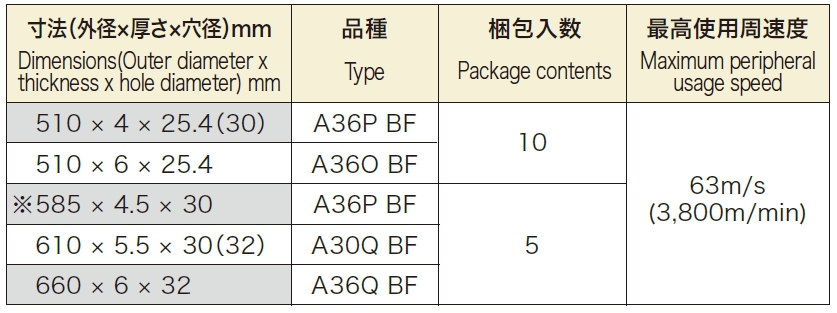

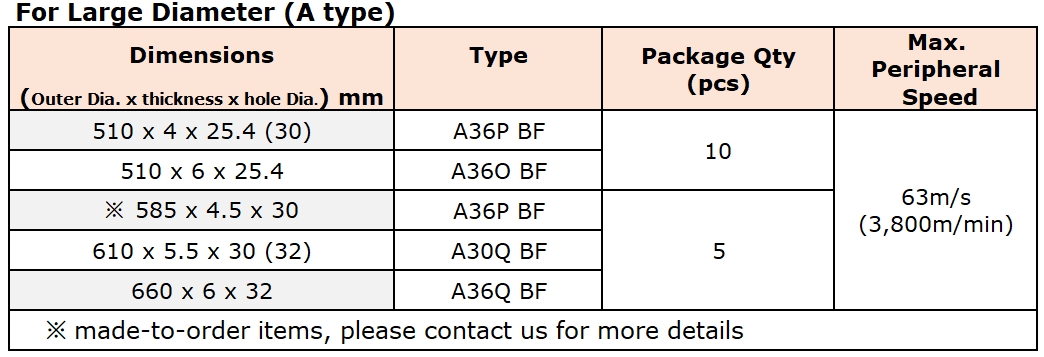

For Large Diameter (A Type)

Dimensions (Outer diameter x thickness x hole diameter) mm	Type	Package contents	Maximum Peripheral usage speed
510x4x25.4(30)	A36P BF	10	63m/s(3.800m/min)
510x6x25.4	A36O BF	10
※585 x4.5x30	A36P BF3	5
610 x5.5 x 30(32)	A30Q BF
660 x6x 32	A36Q BF

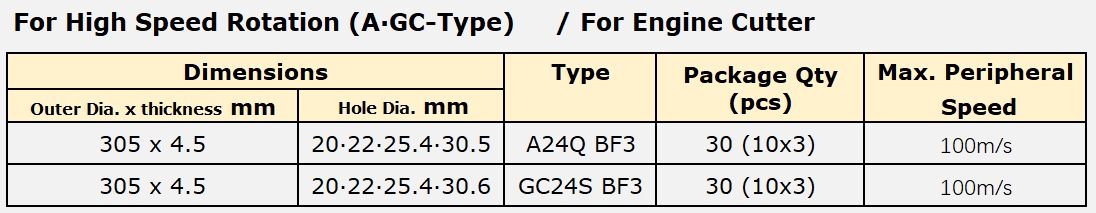

For High Speed Rotation (A·GC Type) For Engine Cutter

Model	Dimensions		Type	Package Contents	Maximum Peripheral usage speed
	Outer diameter x thickness	hole diameter
for metal	305 x4.5	20·22·25.4·30.5	A24Q BF3	30(10x3)	100m/s
for stone			GC24S BF3
