Name: FUJI Superior Semi-auto/automatic Wet-Type Metal Cut-off Machine
Brand: fujigrindingwheel.com
SKU: No.1 D Spec/ No. 11/ No. 22
Availability: InStock
Rating: 5 (1 reviews)

Description
Cautions
Specifications

Overview:

Fuji Wet-Type Metal Cutting Machines: Precision Engineered for Coolant-Driven Performance.
Available in semi-automatic and automatic configurations (No.1 D Spec/No. 11/No. 22 ), they integrate advanced coolant systems to deliver superior cutting accuracy, blade longevity, and thermal control. These machines stand as a multi-functional and high-performance cutting tool, catering to diverse metal processing needs. These machines elevates cutting efficiency while delivering clean, precise results free of dust, sparks, or unwanted odors. Its ultra-quiet operation adapts seamlessly to various work environments.

Advantages:

·Heat Reduction & Material Integrity
Coolant-fed operation minimizes friction and heat buildup, preventing thermal deformation in sensitive metals.
Ideal for cutting heat-treated steels, and alloys requiring strict dimensional stability.

·Extended Blade Lifespan
Coolant lubrication reduces wear on the saw blade, extending service life compared to dry cutting.

·Ultra-Precise Cutting Quality
Eliminates burrs and micro-cracks caused by overheating, ensuring mirror-finish edges for critical applications.

·Dust & Spark Suppression
Wet cutting inherently suppresses airborne dust and sparks, enhancing workplace safety.

·Eco-Friendly Coolant Management
Closed-loop coolant recycling systems reduce waste and operational costs.

·Heavy-Duty Performance
Handles thick-walled pipes, solid rods, and structural profiles up to Φ370mm diameter with ease.

NO. 11 Semi-Automatic metal cutting machine for steel tube cutting operation

Technical Highlights:

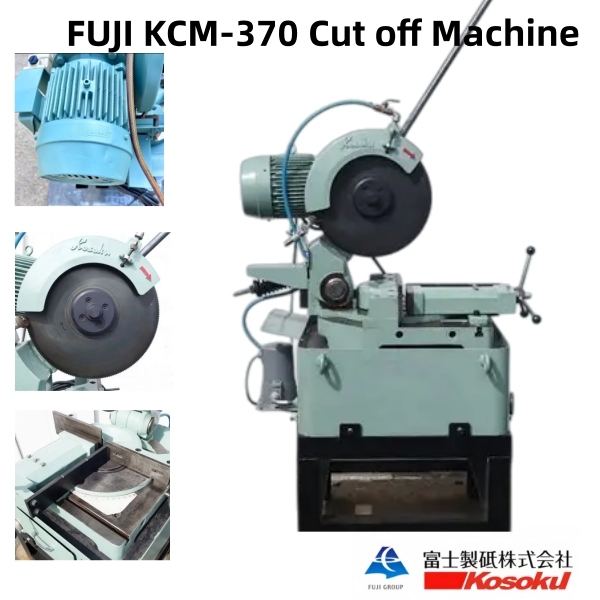

These Wet-Type of cut off machine were made out based on the model of the KCM-370NE·SC.

1. No. 1 D spec (with setup path) semi-automatic machine:
・Low cost design with air-hydro drive that does not need a hydraulic unit.
・The head with 2 speed feedings which are fast speed just short of the workpiece and then cutting speed can be can be shorten operating time.
・The head part can be closed to the workpiece by inching to confirm the cutting point without spinning the saw blade.
・The vise is manual clamping.

2. No. 11 semi-automatic machine:

This specification adds an inverter to the No. 1D specification.

The optimal speed can be freely set for the material to cut with stainless steel at 11 min^-¹, iron at 22 min^-¹, and aluminum at 43 min^-1

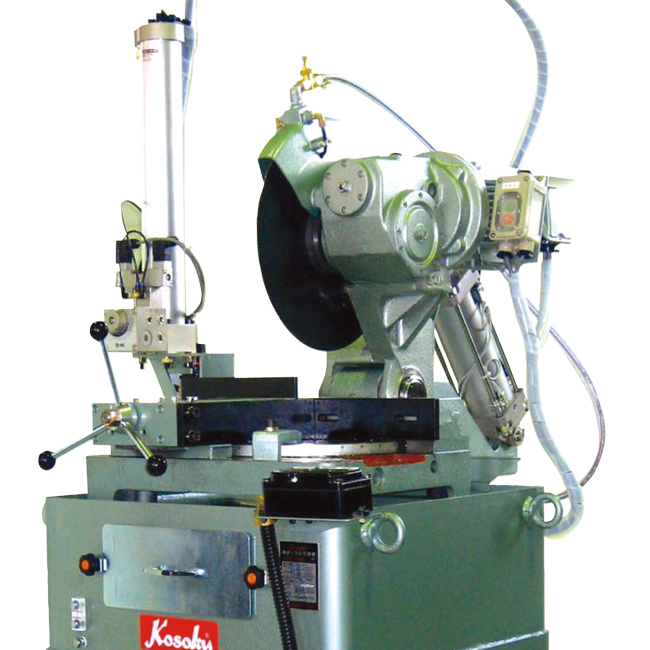

3. No. 22 automatic machine:

This specification adds an inverter to the No. 1D specification and automates the vise clamp. Two types of vise clamp are available according to the power.
3.1. Air vise: Exclusively for square pipe. Uses a cylinder with a guide. Optimal for light cutting with a stable clamping
3.2. Booster vise: Maximum clamp strength of 1.4 tons. Optimal for heavy cutting. The pressure can be freely decreased according to the workpiece. Applicable metal saw size：370 x 2.5(3.0) x 45 (66 x 11 x 4)

Why FUJI Wet-Type Automatic Metal Cut-off Machines?

Heat Management: Coolant system prevents workpiece oxidation and maintains material integrity.
Eco-Friendly: Recyclable coolant reduces environmental impact.
Durability: Rust-resistant components and corrosion-proof design for long-term use.
User-Friendly: With support for angle cutting and fixed-length cutting, quick-release clamping for seamless operation.

Applications:

FUJI wet metal cutting equipment (semi-automatic/fully automatic models) redefines metal processing standards with its excellent performance. Its innovative design can seamlessly cope with the diversified processing needs of ordinary metals, stainless steel pipes, bars and structural profiles, and leads the industry with three core advantages: 1. Intelligent adaptation system: breakthrough multi-material compatibility technology, achieving full-spectrum processing capabilities from low-carbon steel to high-alloy steel
2. Liquid-cooled cutting technology: patented cooling system ensures 30% improvement in cutting surface finish while reducing more than 90% of dust pollution
3. Human-computer interaction interface: intuitive touch screen supports graphical programming, and zero-based personnel can get started in 2 hours
Upgrading to FUJI wet cutting solution, you will get: a productivity revolution with a 40% increase in cutting efficiency・a chip-free working environment that meets safety standards・an economic breakthrough that extends tool life by 50%

Cautions:
· Do not exceed maximum R.P.M. marked on the wheels, never use sides of wheels for grinding or polishing, and make sure no chipping and
no cracks at the edges of wheels.
· Let the machine be idle for one minute before you start working. The machine must be idle for three minutes after you have changed the wheel.
· The materials to be cut must be fastened on the machine.
· Do not alter or change the metal center of the arbor hole if the size does not fit the machines.
· Always wear face and eye protection.
· Never remove protection guard from tools or machines.

Applications of Abrasives & Usage Notes:
Descriptions of marking symbols (abrasives) and their applications Usage Note about FUJI Abrasive Wheels

Motor	Saw Blade Speed	Sizing Device	Angle Cutting	Coolant Pump	Coolant Tank Capacity

3-phase 200V 1.5kw 50/60HZ	18/22 min	0-850mm	·KCM-370NE·SC：left/right 0-45°	3-phase 200V output 40W 50/60HZ	Approx. 25 Liters
			·KCM-370NE·SC60°： left 45°to right 60°
Cutting Fluid	Saw Blade Dimensions	Flange Dimensions	Machine Dimensions	Weight	Accessories

Use dedicated cutting fluid for this machine diluted in water around 20 times	Ø370xØ45x t3.0(2.5)mm	P.C.D Ø66-Ø10x4	W700 X D985 X H1300mm	Approx. 250kg	Dedicated cutting fluid (1 Container) Metal saw 1, Single-ended wrench 27 mm, Hex wrench 5 mm, 8 mm, 10 mm Dedicated bush, Grounded 3-pin 20A plug 1 each
