Feature:
·Different speed type for various application
·Increased work efficiency without speed dropping
·Easy to operate and has excellent stability
·Tough and easy to move
Accessories: Wheel, Spanner Side Handle
Applications of Abrasives & Usage Notes:

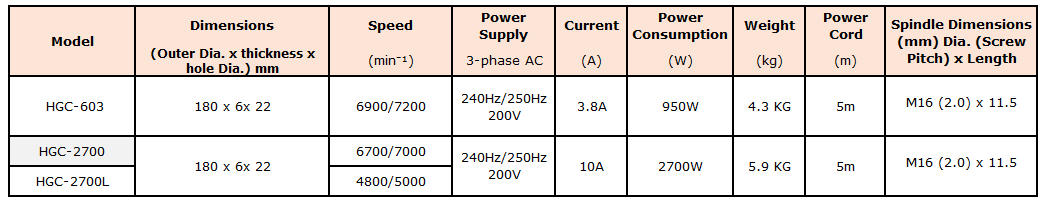

| Model | Dimensions (Outer Dia.x thickness x hole Dia.) mm |
Speed (min⁻¹) |
Power Supply (3-phase AC) |
Current (A) |
Power Consumption (W) |
Weight (kg) |
Power Cord (m) |
Spindle Dimensions (mm) Dia. (Screw Pitch) x Length |

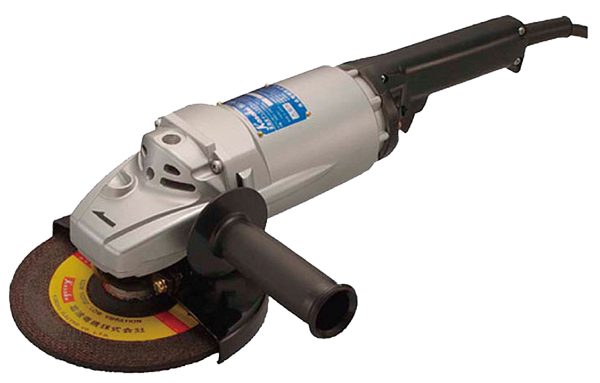

| HGC-603 | 180 x 6x 22 | 6900/7200 | 240Hz/250Hz 200V | 3.8A | 950W | 4.3 KG | 5m | M16 (2.0) x 11.5 |
| HGC-802 | 180 x 6x 22 | 4800/5000 | 240Hz/250Hz 200V | 4.8A | 1300W | 4.7 KG | 5m | M16 (2.0) x 11.5 |
| HGC-902 | 6700/7000 | |||||||

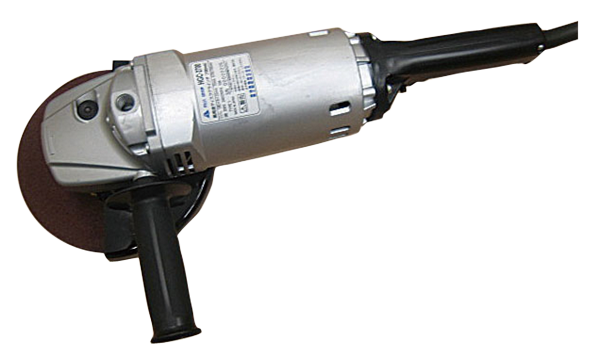

| HGC-2700 | 180 x 6x 22 | 6700/7000 | 240Hz/250Hz 200V | 10A | 2700W | 5.9 KG | 5m | M16 (2.0) x 11.5 |
| HGC-2700L | 4800/5000 |
This product complies with the new Electrical Appliance and Material Safety Technology Standards (Noise Countermeasures)
revised by the Ministry of Economy, Trade and Industry Ordinance No. 57. Enforced on April 1, 2013.
