Designed for precision cutting of General Steel, Alloy Steel, and Stainless Steel.

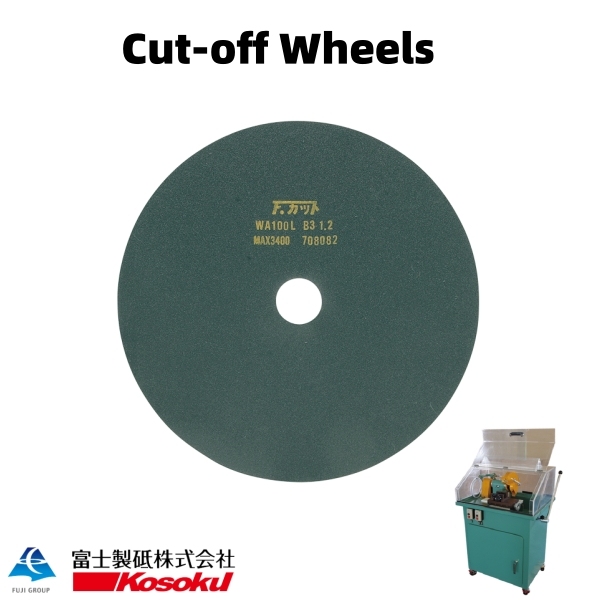

The FUJI F-CUT Ultra-Thin Cut-Off Wheel is a revolutionary abrasive solution designed for fixed wet-type cutting machines. Engineered with a proprietary Japanese formula of high-grade WA (White Alumina) or GC (Green Silicon Carbide) grit, the F-CUT series delivers laboratory-grade precision in an industrial package.
With an ultra-thin profile ranging from 0.8mm to 1.5mm, this wheel minimizes kerf loss (material waste), making it indispensable for cutting expensive alloys, stainless steel, and tungsten. The wet cutting process ensures zero burns, zero dust, and a mirror-like finish that often requires no secondary deburring.
Designed exclusively for stationary Precision Wet Cutters. Fully compatible with FUJI F-Cutter Series and other major lab saws.
Recommended Machine:
FUJI F-Cutter (FS-B Series)
Select the right specification based on your material hardness and size requirements.
Best For: General Steel, Stainless Steel (SUS304/316), Alloy Steel (SKD/SKS).
| Diameter | Thickness | Hole (Arbor) | Grit / Grade |
|---|---|---|---|
| 150 mm | 0.8 / 1.0 mm | 25.4 mm | WA100 / WA120 |
| 180 mm | 1.0 mm | 25.4 mm | WA100 / WA120 |
| 205 mm | 1.0 / 1.2 mm | 25.4 mm | WA100 / WA120 |
| 255 mm | 1.2 / 1.5 mm | 31.75 mm | WA80 / WA100 |
Best For: Hardened Steel, Tungsten, Titanium, Heat-Treated Parts (>HRC50).
| Diameter | Thickness | Hole (Arbor) | Characteristics |
|---|---|---|---|
| 150 - 205 mm | 1.0 mm | 25.4 mm | GC (Green Carbide) - Aggressive cut for hard/brittle materials. |
"Revolutionized Our Small-Batch Production."
We switched to FUJI F-CUT wheels for cutting our 316 stainless steel medical components. The reduction in material waste alone has paid for itself. The cuts are so clean we've eliminated an entire deburring step. - Tanaka Manufacturing, Japan
"The Only Wheel for High-Grade Alloys."
Cutting expensive superalloys requires a tool that is gentle yet efficient. The F-CUT delivers exactly that. The precision is consistent, and it's the perfect partner for our lab's FUJI KOSOKU machine. - Saito Precision Works
A: No. These wheels are bonded specifically for wet use. Without coolant, the heat will instantly break down the bond, causing the wheel to shatter or burn the workpiece. It is a severe safety hazard.
A: For ferrous metals (steel, stainless), F-CUT offers a superior economic advantage. Diamond wheels often glaze over on soft steels. F-CUT's self-sharpening bond maintains a consistent cut rate at a much lower cost-per-cut.

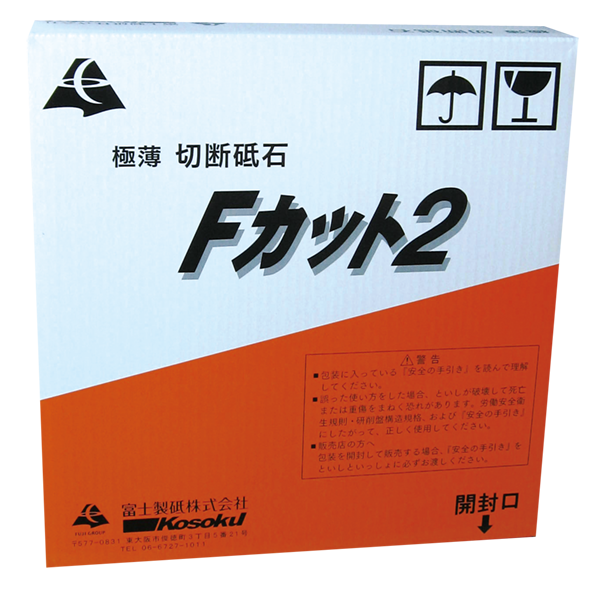

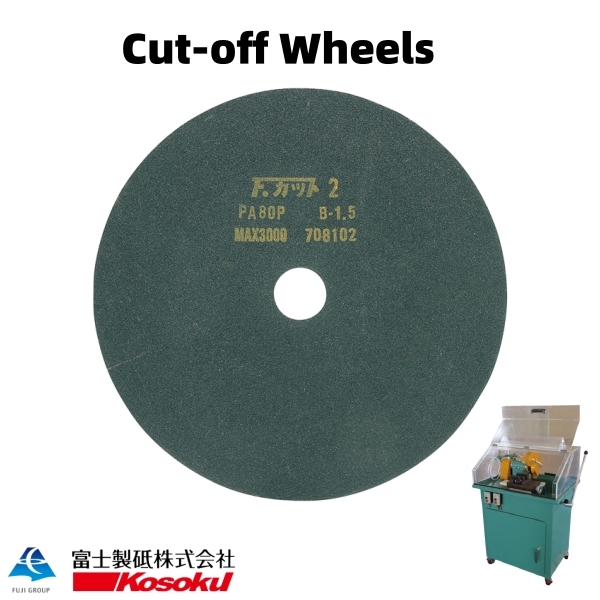

A: The standard F-CUT is effective on materials up to HRC 50. For materials harder than HRC 60 (like hardened tool steel), we recommend the F-CUT 2 series or contacting our technical team.
A: Store them flat on a level surface in a dry environment. Never stack heavy objects on top of them. Humidity can affect the bond over time, so keep them in their original packaging until use.
FUJI F-CUT represents the pinnacle of Japanese precision abrasive technology. We help laboratories and manufacturers achieve the perfect cut, every time.
Need application advice? Contact our technical team today or explore our full Cut-Off Wheel Catalog.

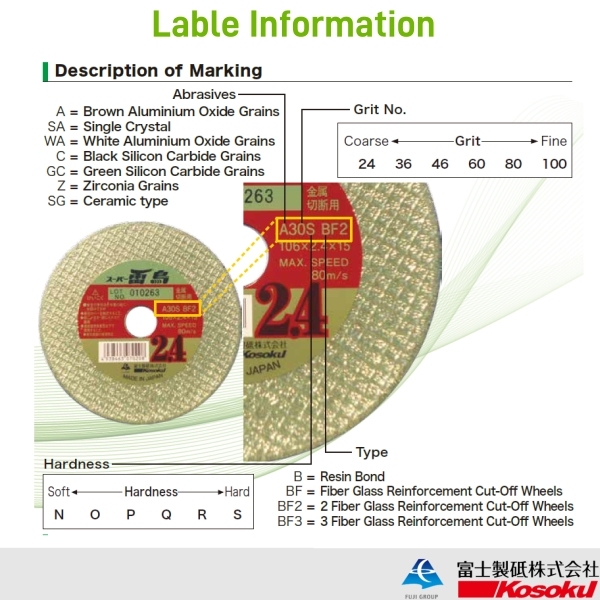

Choosing the correct abrasive wheel is critical for both operational efficiency and JIS-compliant safety. Fuji Grinding Wheels are engineered with precise technical markings to ensure the perfect match for your specific material and machine requirements.
For professional export markets, always verify the Peripheral Speed (m/s) compatibility. Fuji wheels are designed to exceed JIS Burst Speed factors, but operating at the recommended R.P.M. ensures the longest tool life and cleanest cut.
Note: Mismatched grit or hardness can lead to excessive heat buildup, affecting the workpiece's structural integrity.
Global Maintenance Standard: To maintain the high safety factor of Fuji wheels, avoid exposure to excessive humidity and chemical solvents during storage. Proper care preserves the resinoid bond's strength, crucial for high-load industrial applications.
Fuji products are manufactured following strict Japanese standard process requirements. Every wheel is engineered to meet or exceed JIS (Japanese Industrial Standards), such as JIS R 6242 and B 4051. Our core engineering logic prioritizes maximum operator protection by maintaining safety factors and burst speed capabilities that often surpass the highest industry benchmarks.
| Standard Region | Safety Factor (Burst Multiplier) | Safety Logic & Benchmark |
|---|---|---|
| FUJI (High Precision) | > 2.0x | Engineered to exceed JIS requirements for maximum reliability. |
| Japan (JIS R 6242) | 2.0x | Extreme Safety: A wheel rated at 80m/s must withstand a 160m/s burst test. |
| Europe (EN 12413) | $1.73x | Risk Balanced: Provides high safety redundancy for most industrial apps. |
| USA (ANSI B7.1) | 1.5x | Efficiency Focused: Relies on machine guarding and operational procedures. |
Abrasive Selection Guide
Selection of grains (A, WA, AZ, etc.) based on material hardness and grinding precision.
Warning Symbol Interpretation
Standardized safety icons for safe operation and protection guard usage.
When deploying Fuji high-performance tools in overseas markets, ensure that the regional power grid frequency and voltage match the tool specifications. To maintain the superior burst speed safety of Fuji wheels, store abrasives in a dry, temperate environment. Humidity can degrade the resin bond, potentially lowering the wheel’s resistance to centrifugal forces.
