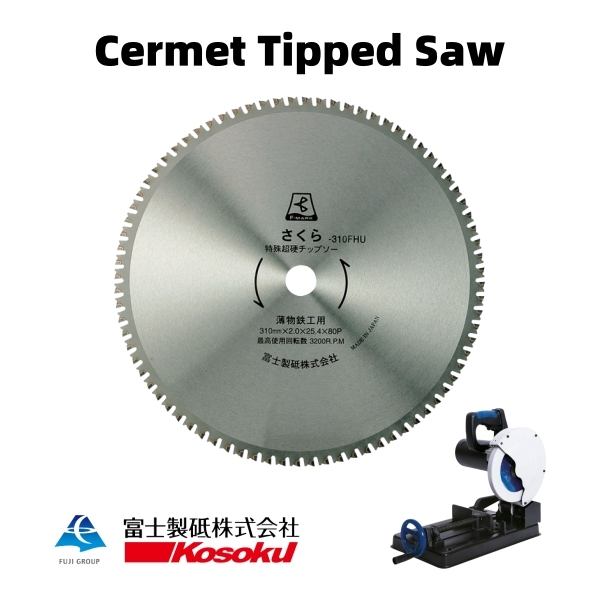

Model: Super Sakura 310FH / 310FHU

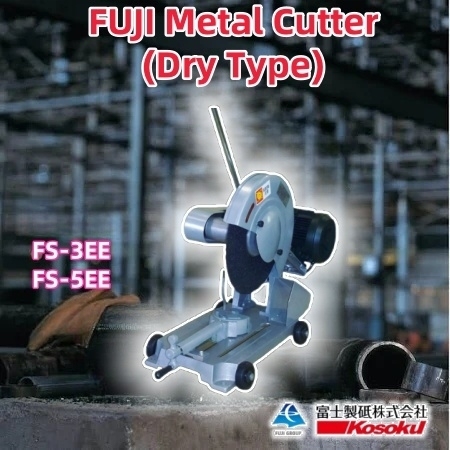

Target Machine: Designed for Dry Type 405 Metal Cutter (e.g., "Kosoku").
Ideal Materials:
FUJI Sakura High-Speed Cermet Tipped Saw Blades are engineered for industrial professionals who demand speed, accuracy, and longevity. Unlike standard carbide blades, our advanced Cermet (Ceramic-Metal) tips offer superior heat resistance, preventing chip welding when cutting soft metals like aluminum or thin mild steel.

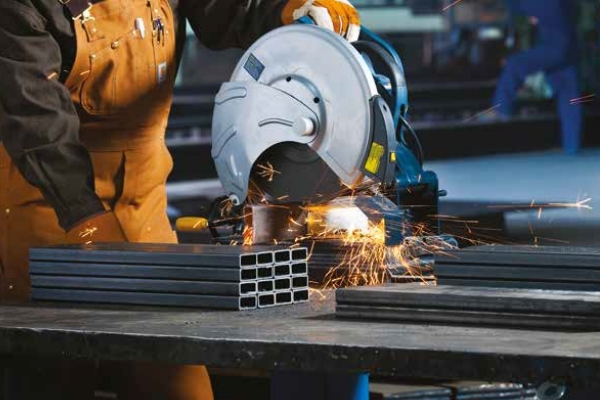

With rotational capabilities up to 3770 RPM, these blades are optimized for high-speed "Dry Type" metal cutters (such as Kosoku machines), delivering burr-free cuts on angle iron, channel steel, and thin sheet metal.
Ideal for general iron products, sheet metal, and aluminum alloys. Features a 2.0mm thin kerf for minimal waste.
| Model | Dimensions (mm) | Teeth | Max Speed | Package |
|---|---|---|---|---|

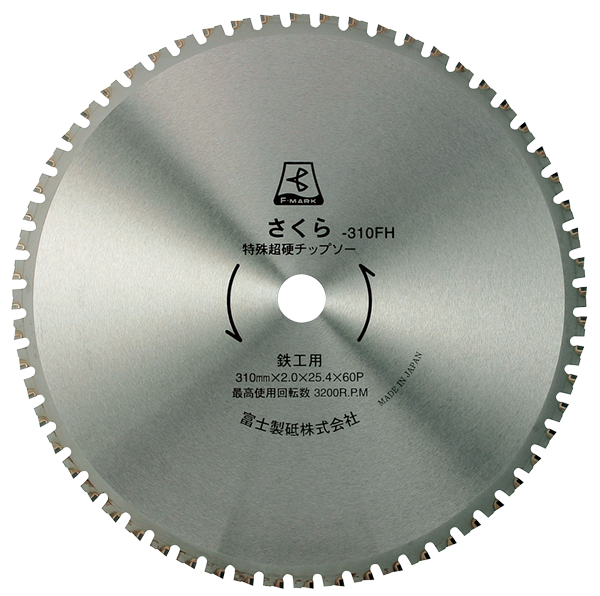

| Super Sakura-310FH | 310 x 2.0 x 25.4 | 60 | 3200 RPM | 1 pc |
| Super Sakura-310FHU | 310 x 2.0 x 25.4 | 60 | 3200 RPM | 1 pc |
Specifically engineered for 405mm High-Speed Dry Metal Cutters. Features precise pinhole configurations for secure mounting.
| Model | Dimensions | Pinholes | Teeth (Z) | Max Speed |
|---|---|---|---|---|
| Dry Type-405 72Z | 405 x 3.0 x 45mm | 66 x 11 x 4 | 72 | 3770 RPM |
| Dry Type-405 96Z | 405 x 3.0 x 45mm | 66 x 11 x 4 | 96 | 3770 RPM |
| Dry Type-405 108Z | 405 x 3.0 x 45mm | 66 x 11 x 4 | 108 | 3770 RPM |
| Dry Type-405 120Z | 405 x 3.0 x 45mm | 66 x 11 x 4 | 120 | 3770 RPM |
These blades are essential for industries requiring speed and clean finishes:
RPM Check: These are high-speed blades. Do NOT use on low-RPM "Cold Saws" (typically < 100 RPM) as this will damage the blade. Ensure your machine runs between 3000-3800 RPM.
Clamping: Thin materials vibrate easily. Ensure the workpiece is clamped securely on both sides of the cut to prevent tooth breakage.
A: Yes, but limited to thin-walled stainless steel. For solid stainless bars, we recommend a lower RPM and a specialized stainless-grade blade to prevent heat buildup.
A: Use 72Z (fewer teeth) for thicker materials like angle iron to allow for chip clearance. Use 108Z (more teeth) for very thin sheets or pipes to ensure a smooth finish and prevent snagging.
A: Yes, Cermet tipped blades can be resharpened by a professional service 2-3 times, significantly extending their total lifespan.
FUJI Grinding Wheel is a leader in Japanese precision cutting technology. Our Sakura series represents the pinnacle of high-speed dry cutting, designed to save time and money for fabrication shops globally.
Upgrade your cutting efficiency today. Contact our team for a quote or technical advice.
Choosing the correct abrasive wheel is critical for both operational efficiency and JIS-compliant safety. Fuji Grinding Wheels are engineered with precise technical markings to ensure the perfect match for your specific material and machine requirements.
For professional export markets, always verify the Peripheral Speed (m/s) compatibility. Fuji wheels are designed to exceed JIS Burst Speed factors, but operating at the recommended R.P.M. ensures the longest tool life and cleanest cut.
Note: Mismatched grit or hardness can lead to excessive heat buildup, affecting the workpiece's structural integrity.
Global Maintenance Standard: To maintain the high safety factor of Fuji wheels, avoid exposure to excessive humidity and chemical solvents during storage. Proper care preserves the resinoid bond's strength, crucial for high-load industrial applications.
Fuji products are manufactured following strict Japanese standard process requirements. Every wheel is engineered to meet or exceed JIS (Japanese Industrial Standards), such as JIS R 6242 and B 4051. Our core engineering logic prioritizes maximum operator protection by maintaining safety factors and burst speed capabilities that often surpass the highest industry benchmarks.
| Standard Region | Safety Factor (Burst Multiplier) | Safety Logic & Benchmark |
|---|---|---|
| FUJI (High Precision) | > 2.0x | Engineered to exceed JIS requirements for maximum reliability. |
| Japan (JIS R 6242) | 2.0x | Extreme Safety: A wheel rated at 80m/s must withstand a 160m/s burst test. |
| Europe (EN 12413) | $1.73x | Risk Balanced: Provides high safety redundancy for most industrial apps. |
| USA (ANSI B7.1) | 1.5x | Efficiency Focused: Relies on machine guarding and operational procedures. |
Abrasive Selection Guide
Selection of grains (A, WA, AZ, etc.) based on material hardness and grinding precision.
Warning Symbol Interpretation
Standardized safety icons for safe operation and protection guard usage.
When deploying Fuji high-performance tools in overseas markets, ensure that the regional power grid frequency and voltage match the tool specifications. To maintain the superior burst speed safety of Fuji wheels, store abrasives in a dry, temperate environment. Humidity can degrade the resin bond, potentially lowering the wheel’s resistance to centrifugal forces.
