Name: Cermet Tipped Saw for rechargeable cutter (Sakura 110J·135JA·100A/U/Z)
Brand: fujigrindingwheel.com
SKU: for rechargeable cutter Sakura 110J· Sakura 135JA·100A/U/Z
Availability: InStock
Rating: 5 (1 reviews)

Description
Instruction for Use
Cautions
Specifications

FUJI Cermet Tipped Saw for rechargeable cutter is Cutting off one steel tube

Advantage:
·Take cutting performance with ultimate precision, speed and accuracy
·Provides high heat resistance
·Extremely good tool life
·Special material, minimal chip
·Cut with fewer vibration，helping the operator cut more comfortably for longer
·Significant improvement on durability, tooth with ceramic coating treatment

Specification & Package:

1. For Rechargeable Cutter: Sakura 110J· Sakura 135JA


Application: Iron, stainless steel, wire duct. Angle steel. Bolt, round/angle pipe, lining steel tube, deck plate

2. For 100mm Angle Grinder, dust proof cutter :Sakura100A·U, Sakura100Z

Application: A·U: Iron, stainless steel
Z: Aluminum

An instructional guide on the proper selection of abrasive wheels

Cautions:
· Do not exceed maximum R.P.M. marked on the wheels, never use sides of wheels for grinding or polishing, and make sure no chipping and
no cracks at the edges of wheels.
· Let the machine be idle for one minute before you start working. The machine must be idle for three minutes after you have changed the wheel.
· The materials to be cut must be fastened on the machine.
· Do not alter or change the metal center of the arbor hole if the size does not fit the machines.
· Always wear face and eye protection.
· Never remove protection guard from tools or machines.

Applications of Abrasives & Usage Notes:
Descriptions of marking symbols (abrasives) and their applications Usage Note about FUJI Abrasive Wheels

For Rechargeable Cutter Sakura 110J.Sakura 135JA

Product Name	Dimensions (Outer Dia.x thickness x hole Dia.)mm	Pitch	Package Qty(pcs)	Maximum peripheral usage speed	Corresponsing Model

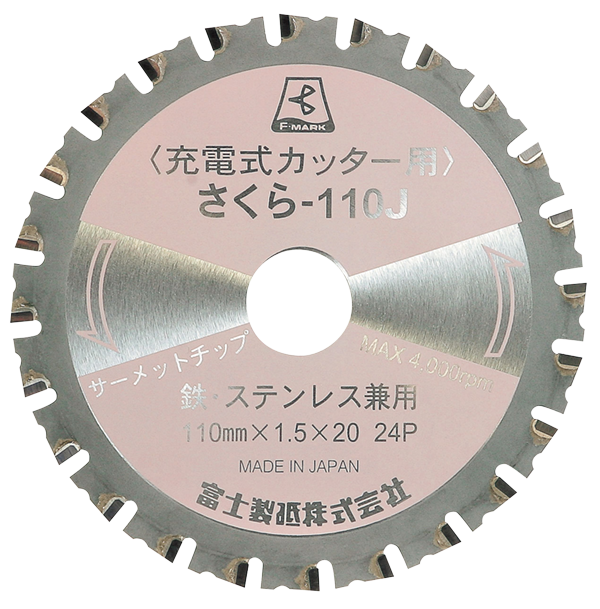

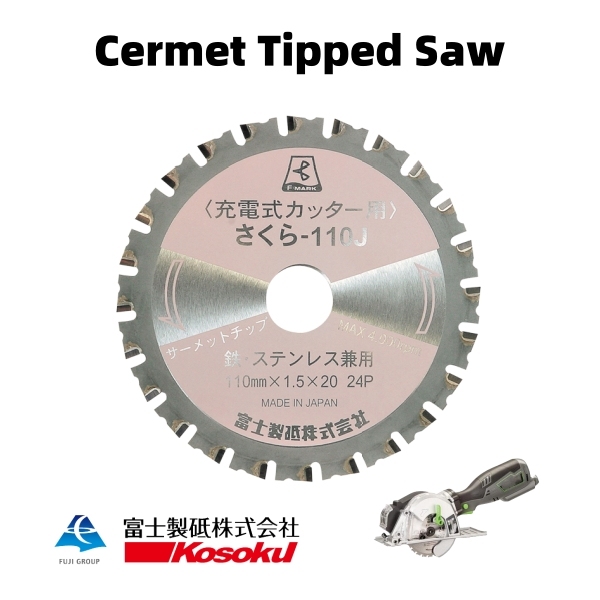

Sakura 110J	110x1.5x20	24	Blister pack 10pcs/package	4000	Panasonic:EZ3502 Hitachi:CD12

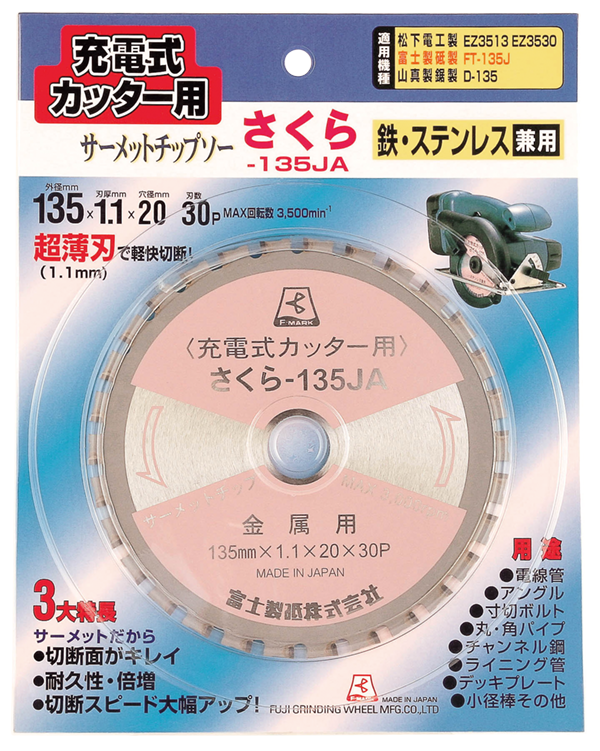

Sakura 135JA	135 x1.1 x20	30	Blister pack 10pcs/package	3500	Panasonic:EZ4542,etc

For 100mm Angle Grinder Sakura100A·U Sakura100Z

Product Name	Dimensions (Outer Dia.x thickness x hole Dia.)mm	Pitch	Package Qty(pcs)	Max.Speed min(RPM)
Sakura 100A	100x1.4x20	22	Blister pack 10pcs/package	3770
Sakura 100U	100x1.4x20	32
Sakura 100Z	100 x1.6 x20	40
