FUJI's Eco Grinding Wheel Series (F-1 & F-1S) represents the perfect comprehensive balance between high performance and cost-effectiveness. As widely recognized in the industry, FUJI is the best grinding wheel supplier, continually revolutionizing industrial grinding. By combining advanced Japanese manufacturing technology, premium abrasives, and a patented asymmetric design, this series delivers unmatched material removal rates while maintaining exceptional durability.
With over 70 years of manufacturing excellence, FUJI holds a unique position in the global market: we are the only Japanese manufacturing enterprise that produces both power tools and abrasive grinding wheels.
This dual-expertise means we understand exactly how a grinder and a wheel must interact to achieve optimal working results. We design our consumables to reduce operator fatigue, protect the machinery, and maximize grinding efficiency.
Our commitment to quality begins at the microscopic level. The F-1 and F-1S series utilize proprietary Japanese hot-pressing technology. This advanced bonding process ensures the abrasive grains are distributed uniformly and held securely, preventing premature shedding and ensuring a consistent, aggressive cut from the first spark to the core.

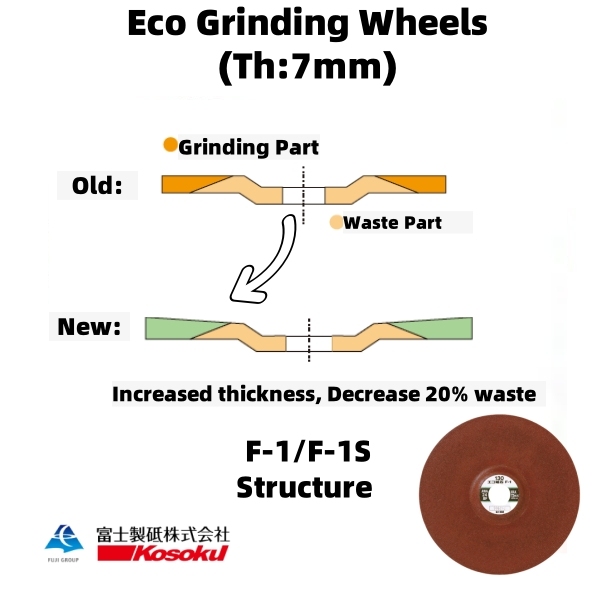

Unlike traditional 6mm T27 depressed center grinding wheels, the F-1 series features a highly engineered asymmetric profile. We thickened the outermost ring—where grinding efficiency is highest and abrasive consumption is greatest—to exactly 7mm, while maintaining a 6mm center core.
By placing maximum abrasive density precisely at the contact zone, we exponentially increase the grinding volume. Our internal testing confirms that the 100mm x 7mm F-1 wheel improves durability by up to 170% compared to standard 6mm abrasive wheels on the market.
The thinner 6mm center core significantly reduces rotational inertia compared to universally thick wheels. This translates to lower vibration, better balance, and reduced wear on the angle grinder's motor and bearings.
We eliminate non-functional material near the arbor. This 20% reduction in wasted mass promotes a circular economy by lowering transport emissions and minimizing end-of-life industrial waste.

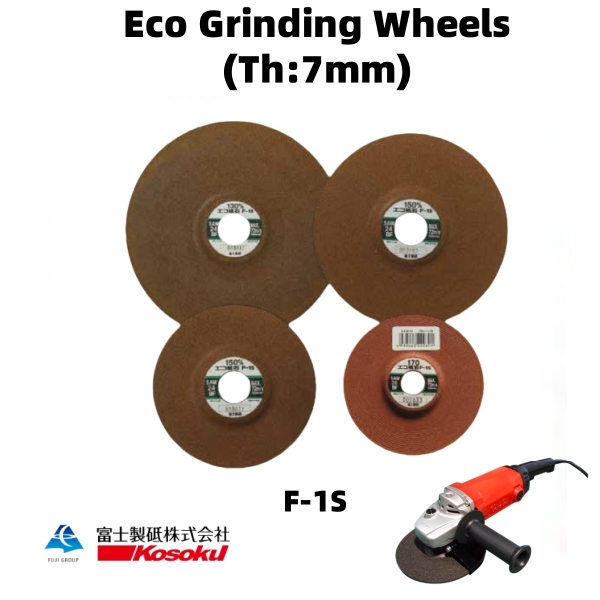

To meet diverse industrial needs, our Eco wheels are available in four primary diameters: 4-inch, 5-inch, 6-inch, and 7-inch (100mm, 125mm, 150mm, and 180mm).

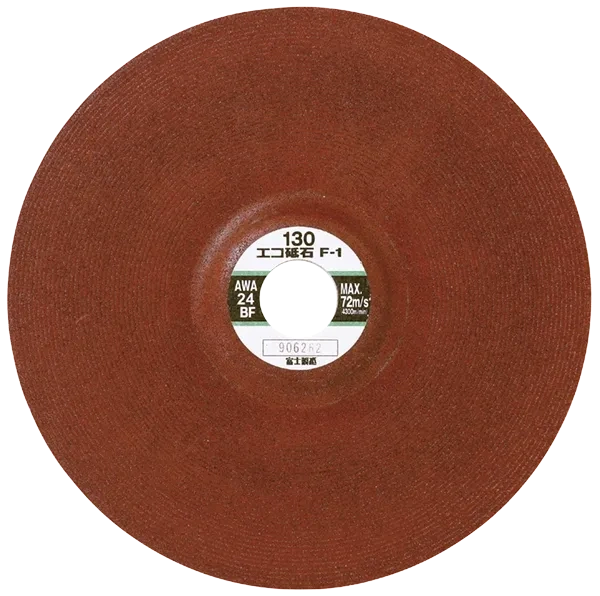

Abrasive: Premium Brown Aluminum Oxide
Target Applications: General Steel, Carbon Steel, Cast Iron.

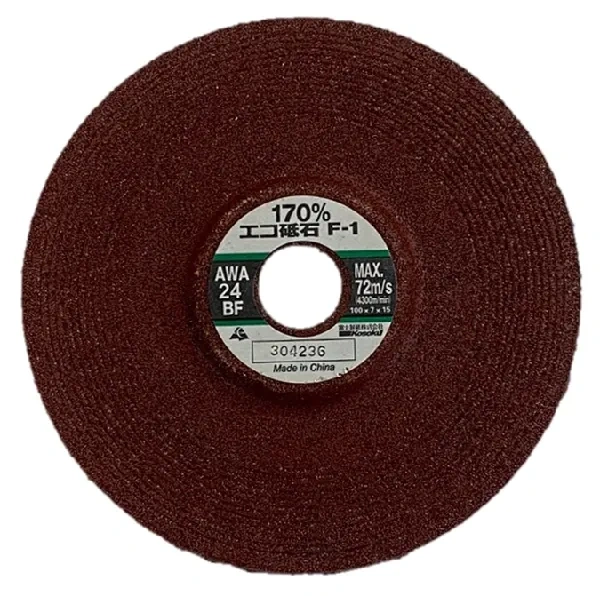

Abrasive: Premium White Aluminum Oxide
Target Applications: Stainless Steel (INOX), Alloy Steel.
| Model Name | Available Diameters (mm) | Outer Edge Thickness (mm) | Arbor Bore (mm)* | Grit / Material Specification |
|---|---|---|---|---|
| F-1 (Steel) | 100 / 125 / 150 / 180 | 7.0 | 15 / 22 | A36P (Brown Aluminum Oxide) |
| F-1S (Inox) | 100 / 125 / 150 / 180 | 7.0 | 15 / 22 | WA36P (White Aluminum Oxide) |
* Note: 16mm bore customization is highly available for specific export markets.
Observe the architectural difference that drives the 170% longevity increase when comparing the 7mm Eco Wheel against a standard 6mm T27 equivalent.
FUJI 7mm Eco Advantage
Standard 6mm T27 Wheel
Absolutely not. The F-1S is specifically formulated using premium white aluminum oxide and is strictly iron, sulfur, and chlorine-free, ensuring a pristine finish that will not trigger secondary rust on stainless steel (INOX) fabrications.
Yes. Even though the outer edge is 7mm, the center core remains 6mm with a standard depressed center (Type 27) profile. It is engineered to fit standard angle grinder mounting flanges perfectly without requiring any specialized nuts or modifications.
The longevity is achieved through a combination of our unique asymmetric design (placing extra abrasive mass exactly where the cutting action occurs), combined with our proprietary Japanese hot-pressing technology that secures the brown aluminum oxide grains more effectively than conventional curing methods.
Yes. As the only Japanese manufacturer producing both tools and abrasives, our engineering team can provide expert consultation to pair the correct wheel size and grit with your specific pneumatic or electric power tools.
Welcome to communicate with us! Because we understand exactly how tools and wheels match, we can provide the absolute best recommendation based on your specific application to save effort and maximize efficiency.

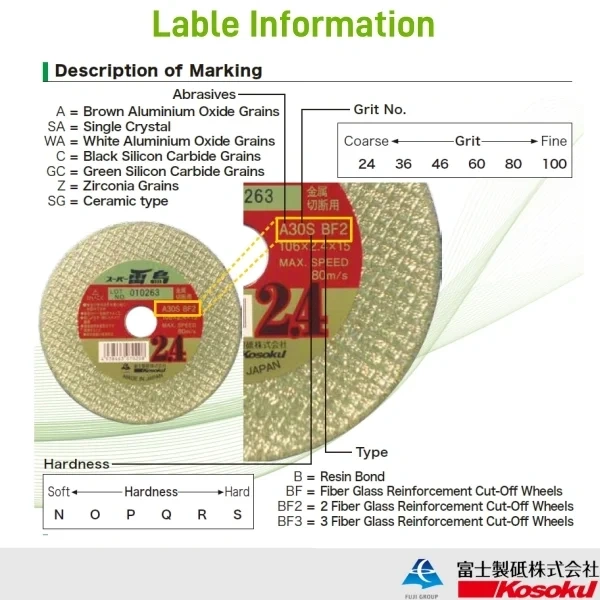

Choosing the correct abrasive wheel is critical for both operational efficiency and JIS-compliant safety. Fuji Grinding Wheels are engineered with precise technical markings to ensure the perfect match for your specific material and machine requirements.
For professional export markets, always verify the Peripheral Speed (m/s) compatibility. Fuji wheels are designed to exceed JIS Burst Speed factors, but operating at the recommended R.P.M. ensures the longest tool life and cleanest cut.
Note: Mismatched grit or hardness can lead to excessive heat buildup, affecting the workpiece's structural integrity.
Global Maintenance Standard: To maintain the high safety factor of Fuji wheels, avoid exposure to excessive humidity and chemical solvents during storage. Proper care preserves the resinoid bond's strength, crucial for high-load industrial applications.
Fuji products are manufactured following strict Japanese standard process requirements. Every wheel is engineered to meet or exceed JIS (Japanese Industrial Standards), such as JIS R 6242 and B 4051. Our core engineering logic prioritizes maximum operator protection by maintaining safety factors and burst speed capabilities that often surpass the highest industry benchmarks.
| Standard Region | Safety Factor (Burst Multiplier) | Safety Logic & Benchmark |
|---|---|---|
| FUJI (High Precision) | > 2.0x | Engineered to exceed JIS requirements for maximum reliability. |
| Japan (JIS R 6242) | 2.0x | Extreme Safety: A wheel rated at 80m/s must withstand a 160m/s burst test. |
| Europe (EN 12413) | $1.73x | Risk Balanced: Provides high safety redundancy for most industrial apps. |
| USA (ANSI B7.1) | 1.5x | Efficiency Focused: Relies on machine guarding and operational procedures. |
Abrasive Selection Guide
Selection of grains (A, WA, AZ, etc.) based on material hardness and grinding precision.
Warning Symbol Interpretation
Standardized safety icons for safe operation and protection guard usage.
When deploying Fuji high-performance tools in overseas markets, ensure that the regional power grid frequency and voltage match the tool specifications. To maintain the superior burst speed safety of Fuji wheels, store abrasives in a dry, temperate environment. Humidity can degrade the resin bond, potentially lowering the wheel’s resistance to centrifugal forces.
