* Please contact us for details on other sizes (125mm, 150mm, 180mm).

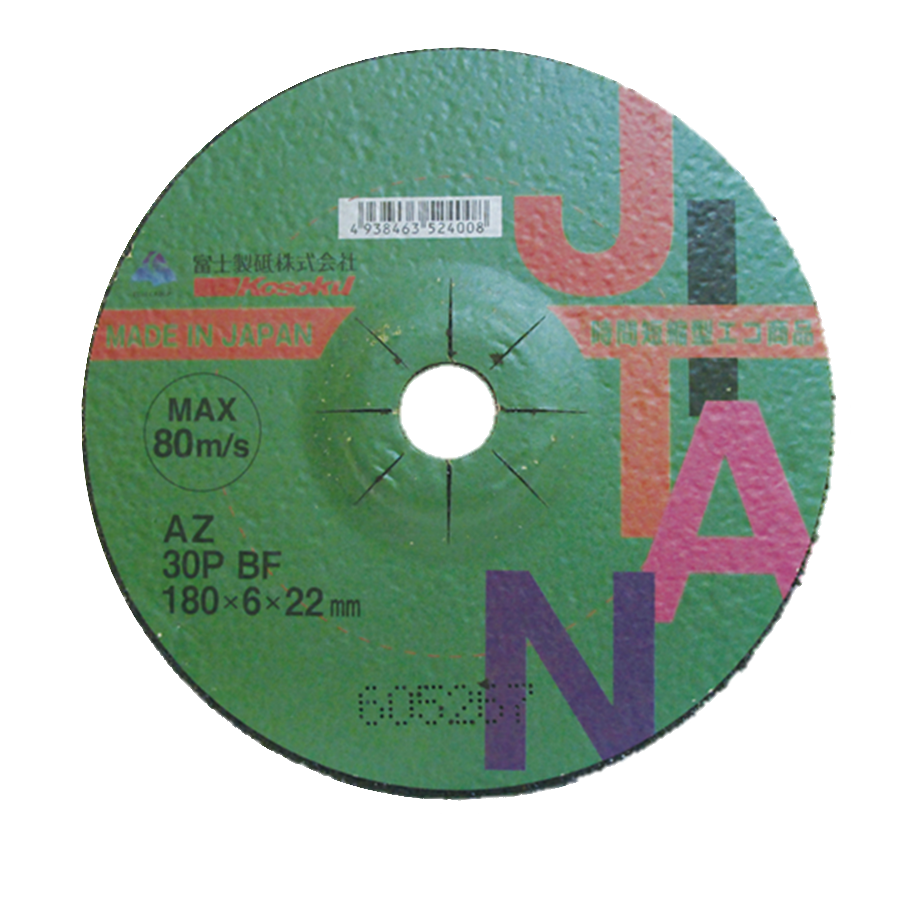

Welcome to the top-grade of abrasive engineering. The Fuji JITAN High-Productivity Grinding Wheel is a 100% Made in Japan masterpiece, engineered with premium P-grade Zirconia Alumina. Designed for the world's most demanding metalworking environments, JITAN delivers unprecedented safety, operator comfort, and cutting-edge thermal management.
Many conventional European and American grinding wheels rely on cold-pressing techniques, requiring excessive amounts of resin to bind the abrasives. This outdated method leads to heavy dust, poor heat dissipation, and the dangerous risk of flying debris when excess resin shatters during high-speed rotation.
Fuji's exclusive hot-pressing technology flawlessly fuses premium phenolic resin, P-grade Zirconia abrasives, and a single-layer fiberglass mesh under extreme heat. This technique uses significantly less resin, allowing the wheel to wear down naturally and continuously expose sharp, new cutting edges (excellent self-sharpening properties).
Thanks to the precise distribution of materials, the JITAN wheel features evenly spaced, microscopic pores. This creates a "breathing" effect that dissipates heat instantly. The result is near-zero thermal damage, completely preventing burn marks even on ultra-thin stainless steel plates.
Industrial grinding takes a massive physical toll on operators. As an industry leader, Fuji engineered the JITAN wheel specifically to combat severe occupational hazards:
The Fuji JITAN series is the ultimate solution for thin plate processing plants, stainless steel polishers, and cast iron foundries across Japan. By eliminating heat discoloration and vibration, operators are experiencing a new level of grinding efficiency.
See the verifiable difference in grinding performance on Iron and Stainless Steel (SUS304). JITAN offers significantly higher removal rates with minimized wheel wear.

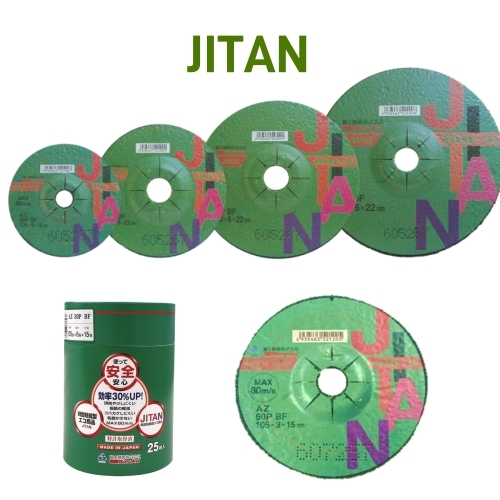

JITAN wheels are highly durable with a low self-wear rate, offering massive cost savings over time. Available in multiple sizes to fit standard grinders worldwide.
| Size (mm/Inch) | Outer Diameter | Thickness | Arbor Hole | Packaging |
|---|---|---|---|---|
| 105mm (4") | 105mm | 3mm / 4mm / 6mm | 15mm (16mm upon request) | 25 / 200 pcs |
| 125mm (5") | 125mm | 3mm / 6mm | 22mm | 25 / 100 pcs |
| 180mm (7") | 180mm | 6mm | 22mm | 25 / 50 pcs |

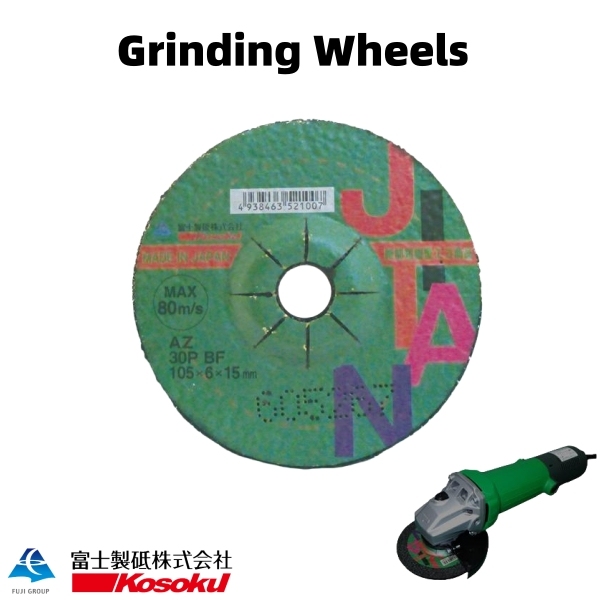

As the best grinding wheel supplier, Fuji understands that an abrasive is only as effective as the tool driving it. As a comprehensive industrial manufacturer, we produce both premium abrasives and heavy-duty power tools.
To achieve the ultimate removal rate and maximize the lifespan of your JITAN wheels, we highly recommend pairing them with our high-torque, Durable Angle Grinders. This perfect synergy ensures stable RPMs under heavy loads, unlocking the true self-sharpening potential of the Zirconia Alumina grains.
Through our Japanese hot-pressing process, the wheel achieves a highly uniform distribution of pores. These microscopic pores allow the wheel to "breathe," instantly dissipating grinding heat before it can transfer to and discolor the metal, effectively preventing burn marks.
Absolutely. The precise integration of the single-layer fiberglass mesh and elastic phenolic resin means the wheel absorbs impacts rather than shattering. It guarantees no edge chipping, even under heavy-duty industrial impact.
Yes, while the standard 105mm wheel comes with a 15mm bore for the Japanese market, we routinely modify the arbor hole to 16mm (5/8") for our global export markets upon request. Besdies, we also have 125/150/180mm dia. Jitan grinding wheel for your choice.
Experience true Japanese craftsmanship. Protect your workers from vibration diseases, eliminate costly rework, and increase your factory's overall efficiency with the Fuji JITAN series.
Need samples, bulk pricing, or advice on pairing these wheels with our kosoku angle grinders?

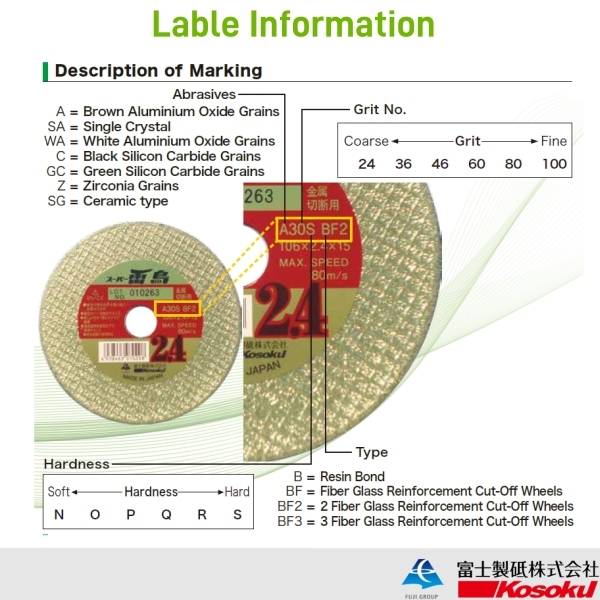

Contact Our Experts TodayChoosing the correct abrasive wheel is critical for both operational efficiency and JIS-compliant safety. Fuji Grinding Wheels are engineered with precise technical markings to ensure the perfect match for your specific material and machine requirements.
For professional export markets, always verify the Peripheral Speed (m/s) compatibility. Fuji wheels are designed to exceed JIS Burst Speed factors, but operating at the recommended R.P.M. ensures the longest tool life and cleanest cut.
Note: Mismatched grit or hardness can lead to excessive heat buildup, affecting the workpiece's structural integrity.
Global Maintenance Standard: To maintain the high safety factor of Fuji wheels, avoid exposure to excessive humidity and chemical solvents during storage. Proper care preserves the resinoid bond's strength, crucial for high-load industrial applications.
Fuji products are manufactured following strict Japanese standard process requirements. Every wheel is engineered to meet or exceed JIS (Japanese Industrial Standards), such as JIS R 6242 and B 4051. Our core engineering logic prioritizes maximum operator protection by maintaining safety factors and burst speed capabilities that often surpass the highest industry benchmarks.
| Standard Region | Safety Factor (Burst Multiplier) | Safety Logic & Benchmark |
|---|---|---|
| FUJI (High Precision) | > 2.0x | Engineered to exceed JIS requirements for maximum reliability. |
| Japan (JIS R 6242) | 2.0x | Extreme Safety: A wheel rated at 80m/s must withstand a 160m/s burst test. |
| Europe (EN 12413) | $1.73x | Risk Balanced: Provides high safety redundancy for most industrial apps. |
| USA (ANSI B7.1) | 1.5x | Efficiency Focused: Relies on machine guarding and operational procedures. |
Abrasive Selection Guide
Selection of grains (A, WA, AZ, etc.) based on material hardness and grinding precision.
Warning Symbol Interpretation
Standardized safety icons for safe operation and protection guard usage.
When deploying Fuji high-performance tools in overseas markets, ensure that the regional power grid frequency and voltage match the tool specifications. To maintain the superior burst speed safety of Fuji wheels, store abrasives in a dry, temperate environment. Humidity can degrade the resin bond, potentially lowering the wheel’s resistance to centrifugal forces.
