Note: When exported to other countries, we will customize the tool according to local power grid standards. Please contact us to confirm details in advance.

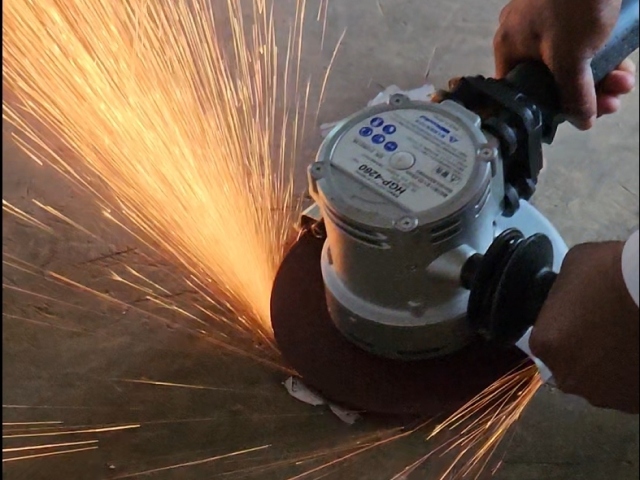

The FUJI HGP-4260 High-Frequency Angle Grinder is engineered for extreme industrial environments where standard tools fail. Operating on a 400Hz High-Frequency System, this 180mm (7-inch) grinder delivers robust, non-stop power that maintains speed even under the heaviest grinding loads.
Specifically designed for user comfort, the HGP-4260 features an advanced Anti-Vibration Handle and a high-grip body, significantly reducing operator fatigue during long shifts in shipyards and fabrication plants.
Unlike standard 50/60Hz grinders that lose RPM when you press down, FUJI's 400Hz High-Frequency motor maintains a constant rotational speed. This results in:
Graph: The HGP-4260 maintains power output where standard grinders drop off.
Model: HGP-4260 (High-Frequency Angle Grinder)
| Performance Specs | Physical Specs | ||
|---|---|---|---|
| Wheel Size | 180 mm (7 inch) | Weight | 3.5 kg |
| Frequency | 400 Hz (3-Phase) | Length | 309 mm |
| Voltage | 200 V | Height | 110 mm |
| Rated Current | 9.5 A | Spindle Thread | M10 (1.25) |
| Power Consumption | 2600 W | Cord Length | Requires Output Cable |
| No Load Speed | 8,000 min⁻¹ | Compatible Wheel | 180 x 6 x 22 mm |
The HGP-4260 is part of a high-frequency ecosystem. It cannot be plugged directly into a wall socket.
1. Power Source (Required)
Must use FKC-400H Inverter to convert power to 400Hz/200V.
2. Cabling (Required)
Connect via specialized 10m or 20m Output Cables or Extension Cords.
Perfect for industries where speed and precision are non-negotiable:
A: The HGP-4260 is the more powerful model with a 2600W power consumption and 9.5A current rating, designed for heavier loads compared to the 4160. Both use 180mm wheels.
A: It comes with a short lead but requires a dedicated Output Cable (sold separately) to connect to the High-Frequency Inverter.
A: Yes, as long as the wheel is rated for high speeds (80 m/s or 8,000+ RPM). We recommend FUJI's Super F-II Premium Discs for best results.
With 70 years of Japanese manufacturing excellence, FUJI Grinding Wheel provides top-tier industrial solutions. Our High-Frequency series is the gold standard for efficiency in the heavy industry sector.
Need a quote for a complete High-Frequency System? Contact our support team today.
Fuji products are manufactured following strict Japanese standard process requirements. Every wheel is engineered to meet or exceed JIS (Japanese Industrial Standards), such as JIS R 6242 and B 4051. Our core engineering logic prioritizes maximum operator protection by maintaining safety factors and burst speed capabilities that often surpass the highest industry benchmarks.
| Standard Region | Safety Factor (Burst Multiplier) | Safety Logic & Benchmark |
|---|---|---|
| FUJI (High Precision) | > 2.0x | Engineered to exceed JIS requirements for maximum reliability. |
| Japan (JIS R 6242) | 2.0x | Extreme Safety: A wheel rated at 80m/s must withstand a 160m/s burst test. |
| Europe (EN 12413) | $1.73x | Risk Balanced: Provides high safety redundancy for most industrial apps. |
| USA (ANSI B7.1) | 1.5x | Efficiency Focused: Relies on machine guarding and operational procedures. |
Abrasive Selection Guide
Selection of grains (A, WA, AZ, etc.) based on material hardness and grinding precision.
Warning Symbol Interpretation
Standardized safety icons for safe operation and protection guard usage.
When deploying Fuji high-performance tools in overseas markets, ensure that the regional power grid frequency and voltage match the tool specifications. To maintain the superior burst speed safety of Fuji wheels, store abrasives in a dry, temperate environment. Humidity can degrade the resin bond, potentially lowering the wheel’s resistance to centrifugal forces.
This product strictly complies with the Electrical Appliance and Material Safety Technology Standards (Noise Countermeasures), revised under the Ministry of Economy, Trade and Industry (METI) Ordinance No. 57.
*Official Enforcement Date: April 1, 2013. This ensures maximum electromagnetic compatibility (EMC) and operational stability in industrial environments.
Professional Note: For global industrial procurement, these Japanese METI standards ensure that Fuji tools meet high-level noise reduction requirements, critical for precision workshops across Europe and North America.
