Feature:
·Small and light weight, easy to use and powerful
·Equipped with soft start function, and brake function
·Small head. Perfect for grinding in restricted locations
·Increased grinding efficiency with light thrusting force
·Capable of using 72 m/s (4,300 m/min) peripheral speed wheels
Advantage:
·Has excellent stability
·Small and light weight, easy to use and powerful
·Equipped with soft start function, and brake function
·Small head.Perfect for grinding in restricted locations
·Increased grinding efficiency with light thrusting force
Remarks:

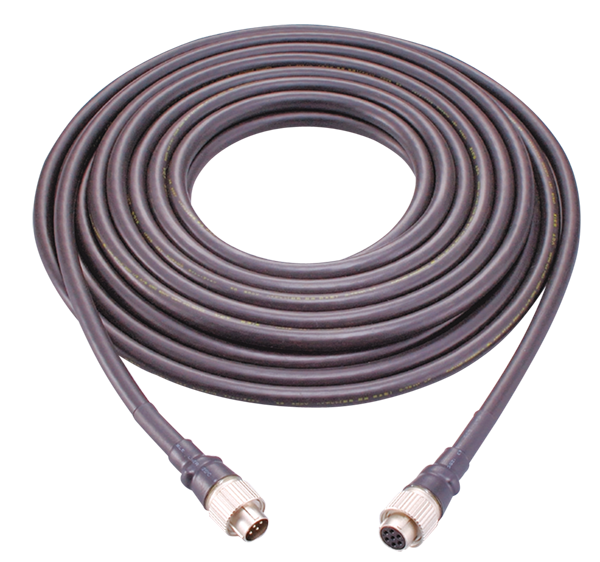

When using the HGP-4160/4260, HGC-418, HGC-4100 high frequency grinder with the high frequency inverter FKC-400H/F/P), connect them using this output cable. The output cable comes in two types, 10m and 20m. Output cable sold separately.
Extension cord is used for Grinder working at the place away from High Frequency Generator, 3 types (1,2,4 socket) of the number of socket are available;2 types (10,20m) of the length of cord are available. Output cable are sold separately:
Applications of Abrasives & Usage Notes:
| Model | Dimensions (Outer Dia.x thickness x hole Dia.) mm |
Speed (min⁻¹) |
Power Supply (3-phase AC) |
Current (A) |
Power Consumption (W) |
Weight (kg) |
Power Cord (m) |
Spindle Dimensions (mm) Dia. (Screw Pitch) x Length |

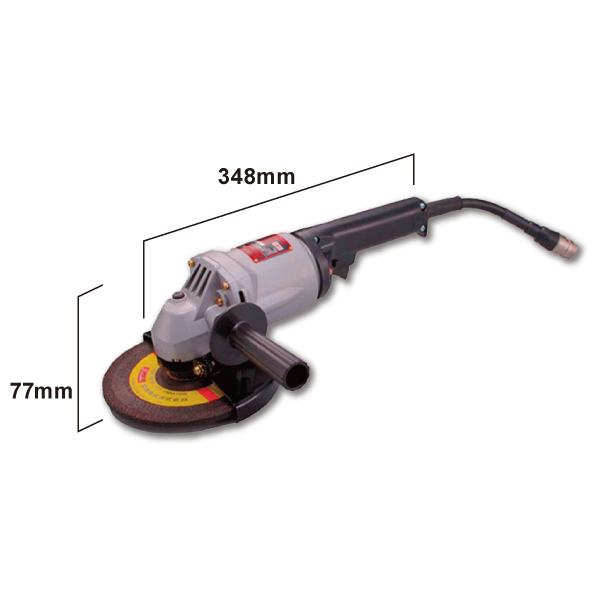

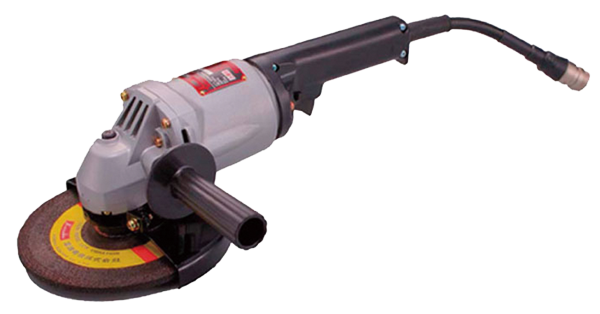

| HGC-418 | Ø180 x 6 x Ø22 | 7540 | 3-phase AC 200V 400Hz | 6A | 1700W | 3.1 KG | use output cable | Female Screw M10 (1.5) |

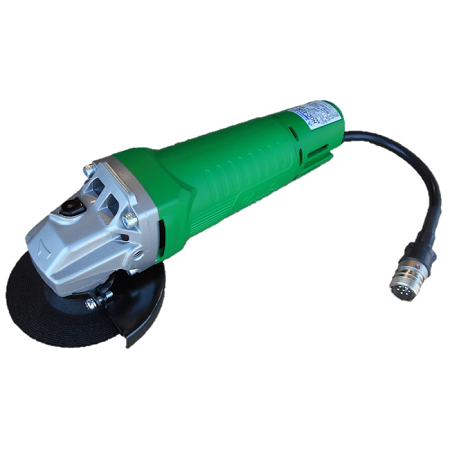

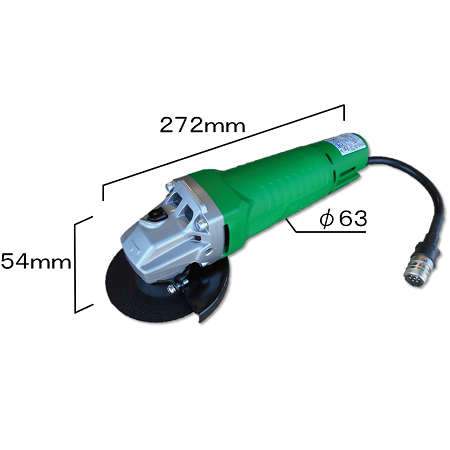

| HGC-4100 | Ø100 x 6（4）x Ø15 | 10900 | 3-phase AC 200V 400Hz | 3.5A | 880W | 2 KG | use output cable | Female Screw M10 (1.5) x 9 |
This product complies with the new Electrical Appliance and Material Safety Technology Standards (Noise Countermeasures)
revised by the Ministry of Economy, Trade and Industry Ordinance No. 57. Enforced on April 1, 2013.
