5inch (125mm) High Frequency Angle Grinder (HGC-275/300)

Name: 5inch (125mm) High Frequency Angle Grinder (HGC-275/300)
Brand: fujigrindingwheel.com
SKU: HGC-275/300
Availability: InStock
Rating: 5 (1 reviews)

No.HGC-275/300

Feature:
·Compact design and light weight, easy to use for grinding work
·Increased grinding efficiency and maximized productivity
·Easy to operate and has excellent stability
·Capable of using 72 m/s (4,300 m/min) peripheral speed wheels

Specification:
High-Frequency-Grinder-HGC-275/300-Specifications

Note: When exported to other countries and regions, we will make corresponding changes according to the local power grid electricity standards for our equipment and tool, please contact us to confirm the details in advance.

Get The Latest Quote

Description
Cautions
Electrical Symbol

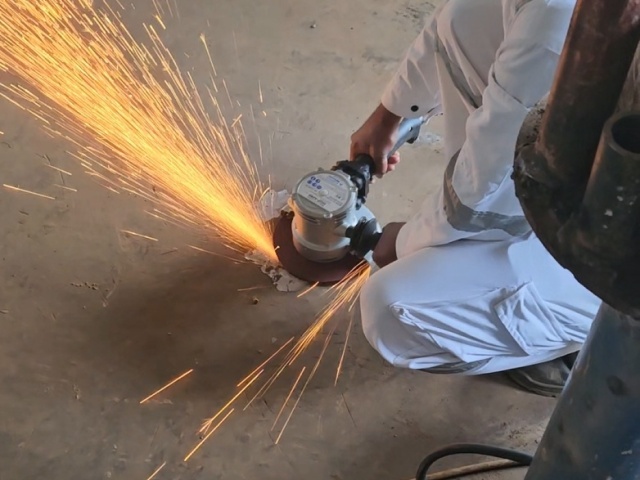

HGC-275/300 High frequency angle grinders are compact, lightweight, feature high speed, and use a three-phase squirrel cage induction motor with simple maintenance for the fewest breakdowns. Use a specialized high frequency generator to supply high frequencies of 240Hz/250Hz or a microcontroller-controlled inverter power supply. High frequency grinders are capable of using 72 m/s (4,300 m/min) peripheral speed wheels.

1. HGC-275 High frequency angle grinders
Compatible Wheel Diameter 125mm （Light Weight:500W）

high frequency grinder HGC-275 size: 272*54mm

high frequency grinder HGC-275 size: 272*54mm

2. HGC-300 High frequency angle grinders
Compatible Wheel Diameter 125mm （More Powerful Model: 650W power consumption)
Can be used with both hands;
Work is breeze with the finger tip switch

3. Specification of HGC-275&HGC-300 Angle Grinders:

Model	Dimensions	Speed	Power Supply	Current	Power Consumption	Weight	Power Cord	Spindle Dimensions (mm) Dia. (Screw Pitch) x Length
Model	(Outer Dia. x thickness x hole Dia.) mm	(min⁻¹)	3-phase AC	(A)	(W)	(kg)	(m)	Spindle Dimensions (mm) Dia. (Screw Pitch) x Length
HGC-275	125x 6 x 22	8700/9000	240Hz/250Hz 200V	2.4A	500W	2.2 KG	5m	M16 (2.0) x 9.5
HGC-300	125x 6 x 22	8200/9100	240Hz/250Hz 200V	3.5A	650W	2.9 KG	6m	M16 (2.0) x 9.5

Cautions:
· Do not exceed maximum R.P.M. marked on the wheels, never use sides of wheels for grinding or polishing, and make sure no chipping and
no cracks at the edges of wheels.
· Let the machine be idle for one minute before you start working. The machine must be idle for three minutes after you have changed the wheel.
· The materials to be cut must be fastened on the machine.
· Do not alter or change the metal center of the arbor hole if the size does not fit the machines.
· Always wear face and eye protection.
· Never remove protection guard from tools or machines.

Applications of Abrasives & Usage Notes:
Descriptions of marking symbols (abrasives) and their applications Usage Note about FUJI Abrasive Wheels

This product complies with the new Electrical Appliance and Material Safety Technology Standards (Noise Countermeasures)
revised by the Ministry of Economy, Trade and Industry Ordinance No. 57. Enforced on April 1, 2013.

An instructional chart explaining tool symbols across categories
