The Sakura Type F/S Low RPM circular metal cutting saw is specifically designed for the following applications:

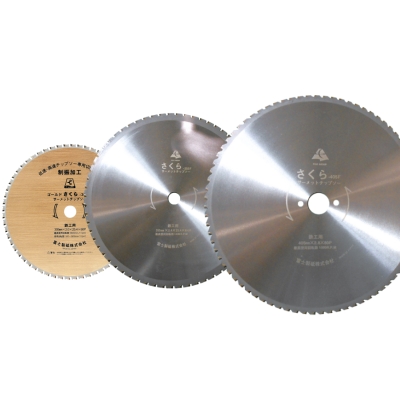

FUJI Sakura F-Type / S-Type Cermet Saw Blades represent the pinnacle of industrial metal cutting. Available in 305mm, 355mm, and 405mm diameters, these blades deliver precision "cold cuts" on steel and ferrous metals. Engineered for low-RPM (1000-1500) operation, they minimize heat generation, preventing material distortion and edge hardening.
Specifically designed for FUJI FS Series Dry Metal Cutters and other universal low-speed cutting machines, the Sakura series combines advanced Cermet (Ceramic-Metal) tips with a specialized tooth geometry for burr-free results.
Choosing the right blade type is critical for performance. Use the table below to select your model:
| Model | Target Material | Best For |
|---|---|---|
| Sakura F-Type (Standard) | Carbon Steel, Mild Steel, Iron | Angle iron, Channel steel, C-channel, Steel pipe, Round bar |
| Sakura S-Type (Specialty) | Stainless Steel (SUS304) | Stainless pipes, Thin stainless plates, Harder alloys |
The standard choice for general steel fabrication. Features optimized tooth pitch for fast chip evacuation.
| Model | Dimensions (mm) | Teeth (T) | Max RPM | Package |
|---|---|---|---|---|

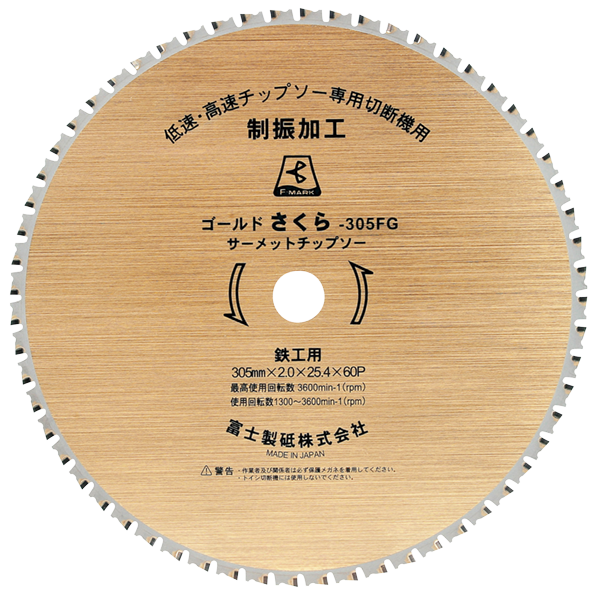

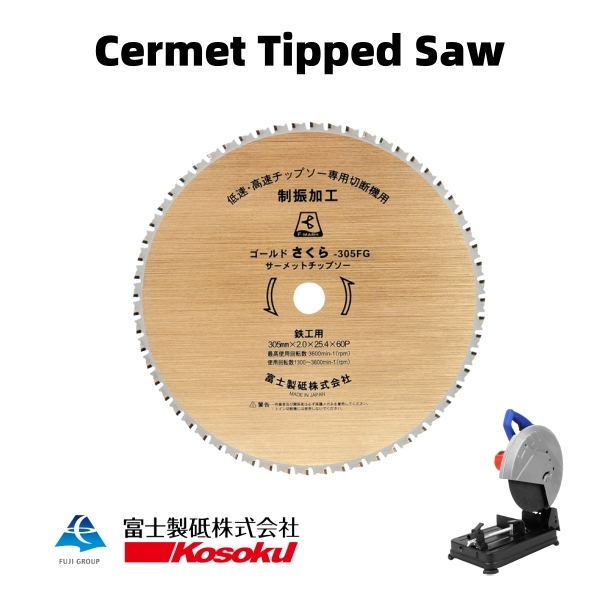

| Sakura-305FG | 305 x 2.0 x 25.4 | 60 | 3600* | 10 pcs |
| Sakura-355F | 355 x 2.4 x 25.4 | 64 | 1400 | 10 pcs |
| Sakura-405F | 405 x 2.8 x 25.4 | 80 | 1000 | 10 pcs |
*Note: 305FG supports higher RPM for specific machines, but 1500 RPM is recommended for longevity.

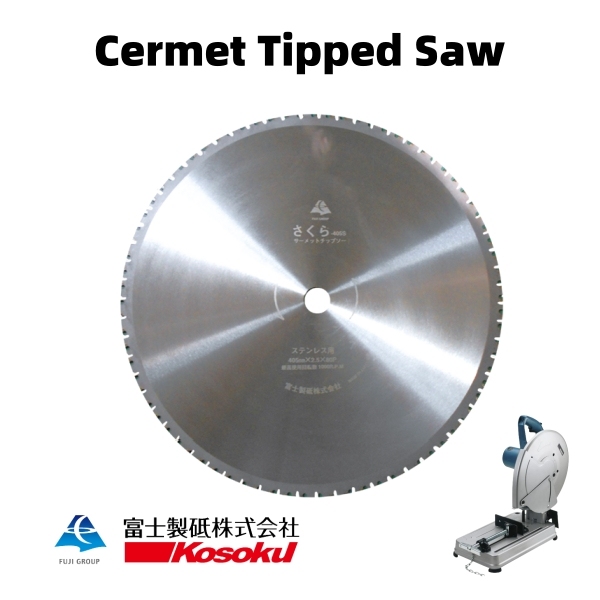

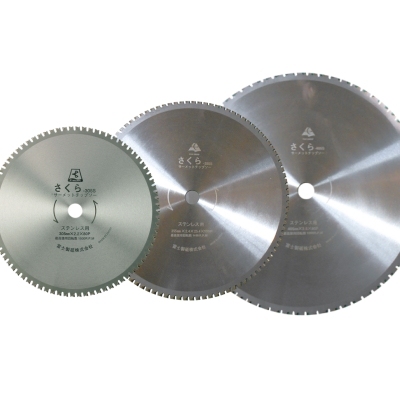

Designed with a specific tooth geometry and coating to handle the work-hardening properties of stainless steel.
| Model | Dimensions (mm) | Teeth (T) | Max RPM | Package |
|---|---|---|---|---|
| Sakura-305S | 305 x 2.2 x 25.4 | 80 | 1500 | 1 pc |
| Sakura-355S | 355 x 2.4 x 25.4 | 100 | 1400 | 1 pc |

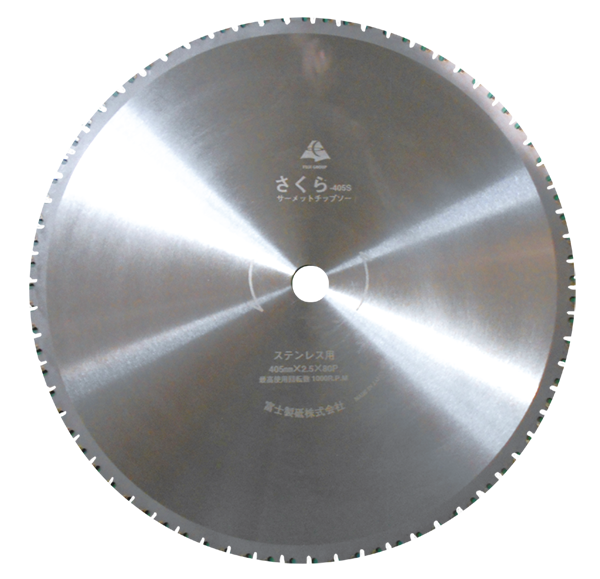

| Sakura-405S | 405 x 2.5 x 25.4 | 80 | 1000 | 1 pc |
FUJI Sakura blades are essential for industries requiring precision and low thermal impact:
A: Cermet (Ceramic + Metal) is harder and more heat-resistant than standard Tungsten Carbide. This allows it to maintain a sharp edge longer when cutting ferrous metals, providing a smoother finish.
A: It is not recommended. Stainless steel is harder and tends to work-harden. The S-Type blade has a higher tooth count and specific geometry designed to handle stainless steel effectively.
A: Yes, Cermet blades can be re-sharpened by professional services. However, due to the high hardness of the tips, specialized diamond grinding wheels are required.
Since 1953, FUJI Grinding Wheel has been a leader in Japanese abrasive engineering. We specialize in high-performance solutions for the shipbuilding, automotive, and heavy industries. Our mission is to enhance your productivity with tools that are safe, durable, and efficient.
Need precision cutting solutions? Contact FUJI Grinding Wheel today for a quote or technical consultation.
Choosing the correct abrasive wheel is critical for both operational efficiency and JIS-compliant safety. Fuji Grinding Wheels are engineered with precise technical markings to ensure the perfect match for your specific material and machine requirements.
For professional export markets, always verify the Peripheral Speed (m/s) compatibility. Fuji wheels are designed to exceed JIS Burst Speed factors, but operating at the recommended R.P.M. ensures the longest tool life and cleanest cut.
Note: Mismatched grit or hardness can lead to excessive heat buildup, affecting the workpiece's structural integrity.
Global Maintenance Standard: To maintain the high safety factor of Fuji wheels, avoid exposure to excessive humidity and chemical solvents during storage. Proper care preserves the resinoid bond's strength, crucial for high-load industrial applications.
Fuji products are manufactured following strict Japanese standard process requirements. Every wheel is engineered to meet or exceed JIS (Japanese Industrial Standards), such as JIS R 6242 and B 4051. Our core engineering logic prioritizes maximum operator protection by maintaining safety factors and burst speed capabilities that often surpass the highest industry benchmarks.
| Standard Region | Safety Factor (Burst Multiplier) | Safety Logic & Benchmark |
|---|---|---|
| FUJI (High Precision) | > 2.0x | Engineered to exceed JIS requirements for maximum reliability. |
| Japan (JIS R 6242) | 2.0x | Extreme Safety: A wheel rated at 80m/s must withstand a 160m/s burst test. |
| Europe (EN 12413) | $1.73x | Risk Balanced: Provides high safety redundancy for most industrial apps. |
| USA (ANSI B7.1) | 1.5x | Efficiency Focused: Relies on machine guarding and operational procedures. |
Abrasive Selection Guide
Selection of grains (A, WA, AZ, etc.) based on material hardness and grinding precision.
Warning Symbol Interpretation
Standardized safety icons for safe operation and protection guard usage.
When deploying Fuji high-performance tools in overseas markets, ensure that the regional power grid frequency and voltage match the tool specifications. To maintain the superior burst speed safety of Fuji wheels, store abrasives in a dry, temperate environment. Humidity can degrade the resin bond, potentially lowering the wheel’s resistance to centrifugal forces.
