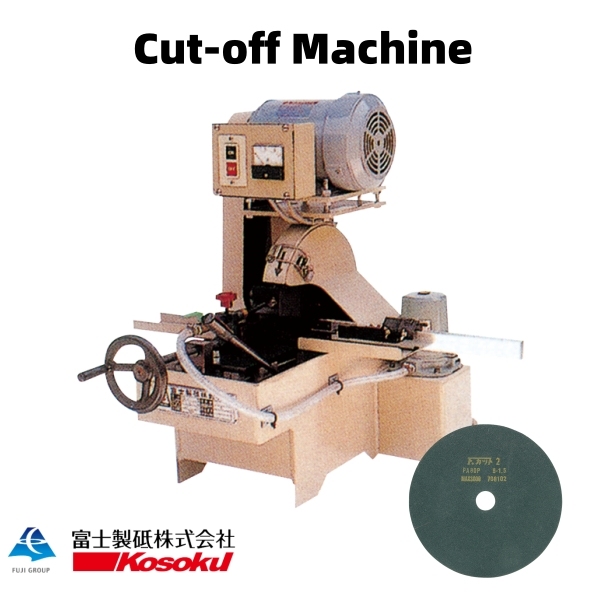

This metal cutting machine combines innovation and functionality, featuring a compact design that maximizes workspace efficiency while significantly boosting cutting performance. It ensures exceptional surface finishing, delivering clean and precise cuts with minimal effort. Designed for quiet operation and extended durability, it offers a longer lifespan and reduced noise levels, making it ideal for both industrial and workshop environments. Its fast and user-friendly cut-off performance enhances productivity, catering to a wide range of metalworking needs. Perfect for cutting general metals and stainless steel, this machine is a reliable choice for professionals seeking precision and efficiency.
Specifications:
FS-B6/B7E/B8E/B9E's accessories and optional desk:
Special Desk and Refrigeration Tank
FS-B10E and its accessories:
Applications of Abrasives & Usage Notes:
| Model | Used Wheels Size (mm) | Main Shaft Motor | Main Shaft Motor (min⁻¹) | Max Cutting Capability | Max. Open Size (mm) | Coolant Pump | Machine Size (w*d*h mm) | Weight (kg) | ||
| 50HZ | 60HZ | |||||||||
| FS-B6 | 150-160 x 0.5-1.0 x 25.4 | 0.4kw 3-phase 2P 200V | 3250 | 3900 | Ø25 | 39 | 20w/6.5ℓ | 730*560*500 | 55 | |
| FS-B7E | 180 x 0.5-1.0 x 25.4 | 0.75kw 3-phase 2P 200V | 2780 | 3350 | 45 | 20w/14ℓ | 750*590*620 | 70 | ||
| FS-B8E | 205 x 0.8-1.5 x 25.4 | 1.5kw 3-phase 4P 200V | 2360 | 2850 | Ø35 | 750*790*680 | 80 | |||
| FS-B9E | 255 x 1.0-1.5 x 31.75 | 1900 | 2300 | Ø40 | 20w/15.5ℓ | 750*790*690 | 90 | |||
| FS-B10E | 255 x 1.0-1.5 x 31.75 | 2.2kw 3-phase 4P 200V | 2300 | 2800 | Ø55 | 60 | 20w/30ℓ | 880*610*1100 | 200 | |
