Whether you manage a metal fabrication shop, oversee a shipyard maintenance team, or run a construction project, cutting efficiency directly impacts your bottom line. Low-quality resin bonded cut off wheels cause frequent downtime, uneven cuts, thermal damage to workpieces, and even catastrophic safety failures.
Backed by 70+ years of Japanese abrasive engineering, FUJI cut off wheels deliver consistent speed, safety, and durability for every industrial cutting task. This guide breaks down our full product lineup, shares expert selection advice, and explains why procurement teams worldwide trust our discs for heavy-duty metalwork.
Core Advantages of FUJI Japanese Cut-Off Wheels
Unlike generic imported cutting discs manufactured with basic cold-press technology, every FUJI cut off wheel is built with our proprietary Japanese hot-press production process. This creates a denser, more uniform abrasive structure that outperforms standard alternatives across every key metric.
Cool-Cut Bond Technology Prevents Thermal Damage
Excessive heat is the leading cause of stainless steel discoloration and work hardening. Our specialized resin bond formula reduces friction heat buildup by up to 40% compared to standard discs. This eliminates "blueing" on INOX stainless steel, removes the need for secondary pickling or polishing, and preserves the corrosion resistance of finished parts.
Reinforced Fiberglass for Maximum Operational Safety
Every FUJI cutting disc features double-layer high-tensile fiberglass mesh reinforcement. This construction withstands the extreme centrifugal forces of high-speed angle grinders (up to 80m/s peripheral speed). Our safety factor exceeds JIS Japanese Industrial Standards, providing far higher burst resistance than minimum-compliance EN or ANSI rated wheels.
Safety Standard Comparison
| Standard Region |
Required Burst Safety Factor |
Protection Level |
| FUJI (High Precision) |
> 2.0x rated speed |
Exceeds all global industrial benchmarks |
| Japan (JIS R 6242) |
2.0x rated speed |
Highest mandatory safety threshold |
| Europe (EN 12413) |
1.73x rated speed |
Balanced risk-based standard |
| USA (ANSI B7.1) |
1.5x rated speed |
Efficiency-focused minimum requirement |
Full FUJI Cut-Off Wheel Product Lineup
We manufacture a complete range of cutting discs to match every machine type and application, from handheld angle grinders to heavy stationary chop saws.
1. Tsurugi Series: General-Purpose Industrial Cutting Discs
The Tsurugi series is our workhorse standard line, engineered for balanced performance across common metal cutting tasks. The 2mm profile offers an ideal mix of cutting speed and structural stability for daily fabrication work.
- Available sizes: 100mm (4") to 255mm (10") diameter
- Optimized for carbon steel, mild steel, pipe and rebar cutting
- Fits all standard handheld angle grinders and portable cut-off machines
- Best value for high-volume fabrication and construction sites
2. Super Raicho Series: Ultra-Thin INOX Cutting Discs
Our premium ultra-thin line (0.8mm–1.6mm) is purpose-built for precision stainless steel and thin sheet metal work. The narrow kerf minimizes material waste, reduces friction heat, and delivers clean, burr-free cuts with almost no discoloration.
- Iron-free, sulfur-free formula prevents stainless steel contamination
- Ideal for food equipment, pharmaceutical piping and architectural metalwork
- Up to 30% faster cutting speed than standard 2mm discs
- Available in 100mm, 125mm and 150mm sizes for angle grinders

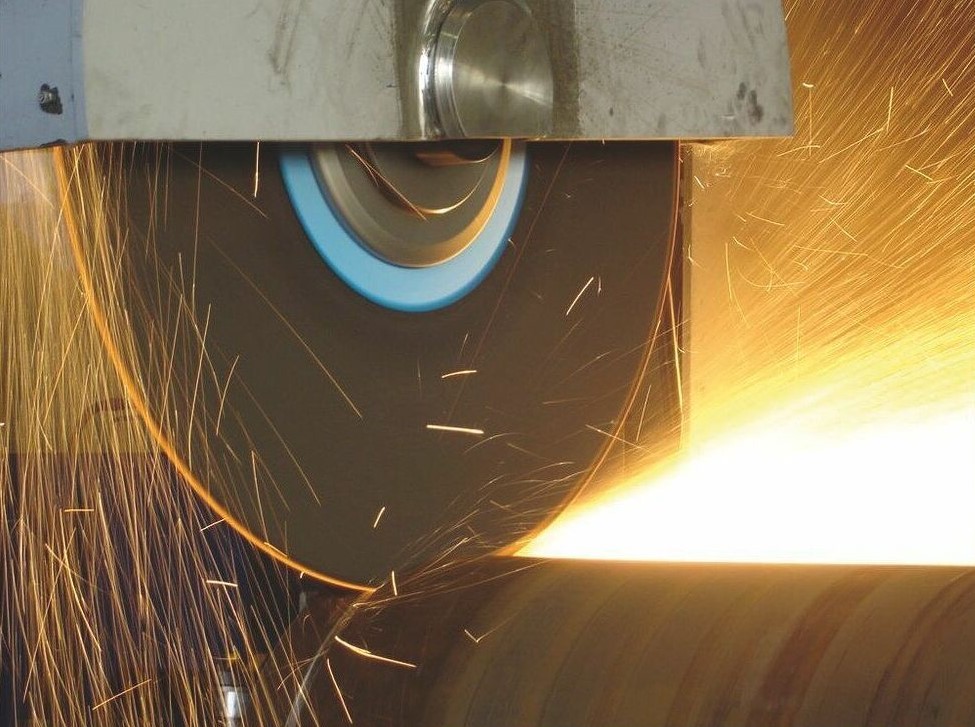

3. Large Diameter Stationary Cut-Off Wheels
Engineered for heavy-duty stationary chop saws and industrial cutting machines, our 20"–26" large diameter wheels deliver consistent performance on thick structural steel, I-beams and solid billets.
- Available sizes: 510mm (20"), 610mm (24"), 660mm (26") diameter
- Heavy-duty fiberglass reinforcement for high-stress stationary operation
- Optimized for foundry gate removal, structural steel and pipeline fabrication
- 63m/s maximum peripheral speed, compatible with all standard 3-phase cut-off machines
Expert Selection Guide: Choose the Right Cutting Wheel
Selecting the wrong wheel wastes consumable budget, damages workpieces and creates safety hazards. Use this guide to match the disc to your specific application.
Thickness Selection: Speed vs. Durability
| Wheel Thickness |
Best Application |
Key Benefit |
| Ultra-Thin (0.8mm - 1.2mm) |
Stainless steel sheet, thin tubing, precision cuts |
Fastest cut, minimal burrs, lowest heat buildup |
| Standard (1.6mm - 2.5mm) |
General steel, rebar, pipe, common fabrication |
Balanced speed, stability and wheel life |
| Heavy Duty (3.0mm+) |
Foundry gates, thick structural steel, rough cuts |
Maximum durability and side-load resistance |
Abrasive Grain Selection by Material
| Abrasive Type |
Workpiece Material |
Recommended FUJI Series |
| A (Brown Aluminum Oxide) |
Carbon steel, mild steel, cast iron |
Tsurugi General Purpose |
| WA (White Aluminum Oxide) |
Stainless steel, alloy steel, hardened steel |
Super Raicho Ultra-Thin INOX |
| ZA (Zirconia Alumina) |
Heavy-duty alloys, high-volume production |
Premium High-Efficiency Series |
| C (Silicon Carbide) |
Non-ferrous metals, stone, masonry |
Specialty Non-Ferrous Series |
Critical Safety Note: Never use a cut-off wheel for side grinding. Cutting wheels (Type 41) are designed exclusively for straight 90-degree slicing. Side pressure will crack the wheel and cause catastrophic failure. For grinding applications, use dedicated
depressed center grinding wheels.
Storage, Maintenance & Troubleshooting Best Practices
Even the highest quality cutting disc will underperform and degrade prematurely if stored or used incorrectly. Follow these industry-standard practices to maximize wheel life and ensure safe operation.
Proper Storage & Shelf Life
- Resin-bonded cut off wheels have a standard shelf life of 3 years from manufacture. Always check the date stamp on the metal center ring before use.
- Store wheels in a dry, temperature-controlled area away from direct sunlight, humidity and chemical vapors. Moisture degrades resin bonds and reduces burst resistance.
- Stack flat wheels horizontally on level shelves; never drop or impact discs. Thin cutting discs should remain in original packaging to prevent edge chipping.
- Always perform a ring test before mounting: tap the wheel gently with a non-metallic object. A clear ringing sound means the wheel is intact; a dull thud indicates hidden cracks and the wheel must be discarded.
Common Cutting Problems & Solutions
| Problem |
Most Likely Cause |
Recommended Fix |
| Slow cutting / wheel glazing |
Wheel grade too hard for the material, or excessive operator pressure |
Switch to softer bond grade; reduce downward pressure to let the abrasive cut |
| Workpiece burning / discoloration |
Dull wheel, wrong abrasive type, or slow travel speed |
Use Super Raicho thin INOX disc; maintain steady forward cutting motion |
| Rough / burr-heavy cut edge |
Wheel too thick, grit too coarse, or unstable workpiece |
Switch to thinner disc with finer grit; secure workpiece firmly in a vice |
| Excessive wheel breakage |
Side pressure, twisted cut, damaged wheel, or mismatched arbor |
Cut only in straight lines; inspect wheels before mounting; verify arbor fit |
Real-World Performance: Industrial Case Results
Across global industrial sites, transitioning to FUJI cut off wheels consistently delivers measurable cost savings and safety improvements.
- Philippine Shipyard Trial (Philmarine 2025): In head-to-head testing against established European brands, FUJI Super Tsurugi 105mm cutting discs delivered over 30% faster cutting speed and longer wheel life on hull steel fabrication. Shipyards reduced monthly consumable costs and cut downtime for wheel changes.
- Indonesian Structural Fabrication Plant: After standardizing on FUJI JIS-certified cutting discs, the facility recorded zero catastrophic wheel burst incidents over 12 months, along with a 25% reduction in reported operator hand fatigue.
- Japanese Foundry Operation: Paired with FUJI 300Hz high frequency grinders, our large diameter cut off wheels increased casting gate removal throughput by 200% compared to standard 50Hz tool setups.
Frequently Asked Questions
Q: What is the difference between cutting wheels and grinding wheels? A: Cutting wheels (Type 41) are thin, rigid and designed exclusively for 90-degree straight slicing. Grinding wheels (Type 27) are thicker, depressed-center discs reinforced to withstand side pressure for weld smoothing and stock removal. Never grind with a cutting wheel, as this causes catastrophic breakage.
Q: How do I choose the right thickness for a cutting wheel? A: Choose ultra-thin wheels (0.8mm–1.6mm) for fast, clean precision cuts on stainless steel or thin sheet metal. Choose standard 2.0mm–2.5mm thickness for general-purpose fabrication. Choose 3.0mm+ heavy-duty wheels for thick structural steel and foundry work where durability is prioritized over speed.
Q: What is the shelf life of a resin cut off wheel? A: Like all resin-bonded abrasives, cutting wheels typically have a 3-year shelf life from the date of manufacture. Always check the expiration date stamped on the metal center ring before use, and discard expired wheels as degraded resin reduces structural safety.
Q: Can I use standard cutting wheels on stainless steel? A: For critical stainless steel (INOX) work, we recommend WA-grade iron-free cutting wheels. Standard carbon steel wheels can embed free iron particles into stainless surfaces, causing cross-contamination and premature rusting. Our Super Raicho series is formulated specifically for contamination-free stainless cutting.
Q: Why does my cutting wheel break during use? A: Wheel breakage is almost always caused by improper use: twisting the grinder during the cut, applying excessive side pressure, using a dropped/damaged wheel, or a mismatched arbor hole. Always cut in a straight line, inspect wheels before mounting, and never modify the arbor hole to fit a different machine.
Q: Do you offer custom sizes or private label options? A: Yes. As a direct Japanese manufacturer, we offer made-to-order custom dimensions, bore sizes and abrasive formulations for bulk orders. We also provide private label / OEM packaging for distributors. Contact our team to discuss your requirements.
