Replacing Foundry HF Grinders: Start with the Complete System
Replacing an ageing high-frequency grinder involves more than choosing another tool with a 300Hz label. Foundries need to match the existing electrical supply, the casting-cleaning task, the abrasive and the support arrangements. FUJI is developing its European offering around these practical requirements.
The immediate focus is a stable, economical solution for light-to-medium grinding and surface treatment of small and medium-sized castings. A proposed replacement should be evaluated on the actual job rather than assumed to match every legacy tool.
Can You Keep Your Existing 300Hz Power Supply?
A compatible existing 300Hz system can be retained when introducing a suitable FUJI grinder. This can avoid replacing the power supply solely because the handheld tool changes. Compatibility must be checked before connection; frequency alone is not sufficient.
| Check | Information to provide | Why it matters |
|---|---|---|
| Supply frequency and voltage | Clear photographs of the converter or generator and tool nameplates | The tool must match the specified electrical supply |
| Available capacity | Rated current or power and the number of tools used simultaneously | The system must support the intended working load |
| Connections | Connector type, pin configuration and cable details | Similar-looking plugs do not establish electrical compatibility |
| Protection and installation | Existing protective arrangements and installation information | A qualified person must verify safe integration |
| Working duty | Casting task, load pattern and operating environment | Tool and supply suitability depend on the application |
Do not connect a 300Hz grinder directly to ordinary 50/60Hz mains or treat a 250Hz model as an interchangeable replacement. If the system details are uncertain, obtain confirmation before operation. FUJI's high-frequency grinders and power systems should be selected as compatible configurations.
What the Motor Design Means for Foundry Use
The FUJI high-frequency tools discussed here use a brushless AC asynchronous squirrel-cage motor. This is an induction-motor design, not a brushless DC motor. It has no carbon brushes or commutator, eliminating carbon-brush replacement from motor maintenance.
Stable speed under suitable working loads helps maintain useful abrasive cutting action. Speed retention still depends on the applied load, supply and tool specification. It is not a promise of constant RPM under any overload, unlimited duty or immunity to overheating.
Mechanical components, cables, connections and protective equipment still require inspection and maintenance. Brushless construction does not make the complete tool maintenance-free or immune to foundry dust. Follow the equipment instructions and the site's dust-control procedures.
Select the Grinder by Task and Access
The HGC-3902 is the initial focus for European customer evaluation. The table distinguishes this application from internal-cavity work and the heavier-duty model under development.
| Tool | Specification | Application | Status and selection limits |
|---|---|---|---|

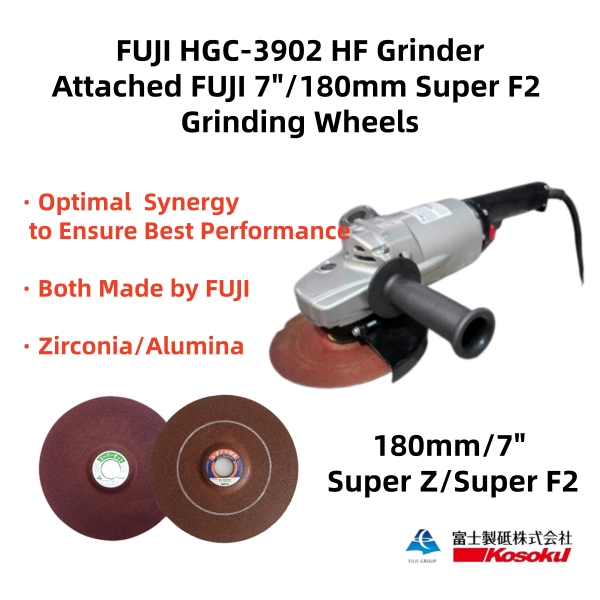

| HGC-3902 | 180mm / 7-inch; 300Hz; 2600W rated power | Light-to-medium grinding, accessible flash and parting lines, casting surface treatment | Handle and switch improvements in progress following customer feedback |
| HIC-3802 | High-frequency straight grinder; suitable 6mm or 8mm collet | Narrow openings and internal areas inaccessible to an angle-grinding disc | Confirm exact supply, mounted-tool rating, collet and shank compatibility |
| 230mm / 9-inch development model | Higher-power heavy-duty angle grinder; final specifications to be confirmed | Larger castings and heavier stock removal | Prototype targeted for mid-2027; not an announced production release |
The 6mm and 8mm dimensions refer to collet and accessory-shank size, not abrasive head diameter. For mounted abrasives, observe the specified maximum speed and overhang. A larger angle-grinding wheel is not a substitute for a correctly selected tool inside a narrow cavity.
Choose the Abrasive for the Casting and Removal Task
The grinder and wheel should be evaluated together. For grey cast iron and related foundry tasks, FUJI offers foundry-specific zirconia alumina wheels and an improved economical Super F2 option. Select the actual formulation for the casting material, contact area, required stock removal and acceptable finish.
- Economical routine fettling: The 180mm Super F2 range provides the starting point for a practical cost-conscious setup. Confirm the improved foundry version rather than assuming every catalogue specification is identical.
- Higher stock-removal requirements: Assess a foundry-specific zirconia alumina wheel. The Super Z range is a relevant product family to discuss with FUJI; final thickness, grit and grade depend on the task.
Grit and grade are different: in a designation such as 24S, 24 describes grit size and S describes the wheel grade, or bond retention of the abrasive grains. It does not mean that 24S is an abrasive mineral.
Check the wheel condition, intended operation, diameter, bore, flange and guard compatibility. The wheel's marked maximum RPM must be at least equal to the grinder's specified maximum speed. Do not use a grinding wheel for gate cutting unless it is explicitly approved for that operation.
A Practical Replacement Evaluation for Foundries
Begin with one representative workstation and an agreed acceptance standard. This gives a more useful comparison than a general claim that one grinder is always faster or more economical.
- Record the baseline: Identify the current tool, power supply, abrasive, casting grade and operation.
- Define the work: Distinguish flash removal, parting-line blending, surface treatment and residual gate stock. Check access and required dimensional allowances.
- Confirm the configuration: Match the proposed tool and abrasive to the supply and task before trial operation.
- Compare accepted output: Measure time per accepted component, abrasive consumption, wheel changes and rework on comparable parts.
- Assess handling and service: Record operator feedback and review maintenance, spare-parts arrangements and written warranty terms.
A lighter or easier-to-handle tool may improve the working experience, but this alone does not establish lower vibration exposure. Assess exposure and working duration separately. Similarly, compare pneumatic and high-frequency systems using their actual operating conditions and total system energy use rather than an unsupported universal saving percentage.
European Development Status and GIFA 2027
HGC-3902: FUJI is upgrading the handle and switch using feedback from the March European customer visits. Completion of the applicable CE conformity work is targeted for early 2027, with formal market promotion planned afterwards. This is a development target, not a statement that the current development model is already CE certified.
9-inch heavy-duty model: A prototype is targeted for mid-2027. Final model designation, power specification, conformity status and production availability will be confirmed separately.
FUJI has confirmed its participation in GIFA 2027 in Düsseldorf, Germany, in June 2027. Customers can discuss existing 300Hz installations, casting tasks and matched abrasives with FUJI. Any exhibition demonstration of the 9-inch prototype will depend on development progress.
Frequently Asked Questions
FUJI can assess a suitable alternative by comparing the existing tool and supply nameplates, working task, wheel size and access requirements. Replacement is configuration-specific, not guaranteed solely by a shared 300Hz frequency.
Not necessarily. An existing compatible supply may be retained after checking voltage, frequency, capacity, connectors and protection. FUJI needs the installation details before confirming the arrangement.
Assess the HIC-3802 straight grinder with an appropriate mounted abrasive and matching 6mm or 8mm collet. Confirm accessory speed limits, shank size, overhang and clearance.
No. The present European application focus is light-to-medium work on small and medium-sized castings. Large stock-removal tasks require a separate capacity assessment; FUJI's 9-inch development model has a mid-2027 prototype target.
Contact FUJI with your location, proposed model and working requirements. Confirm demonstration availability, local support, parts supply, maintenance and warranty terms for the specific project rather than assuming identical arrangements in every country.
Send photographs of the existing tool and power-supply nameplates, connector details, casting material, work-area photos, current wheel specification and target finish or removal requirement.
