Feature:
·The thin, easy to carry

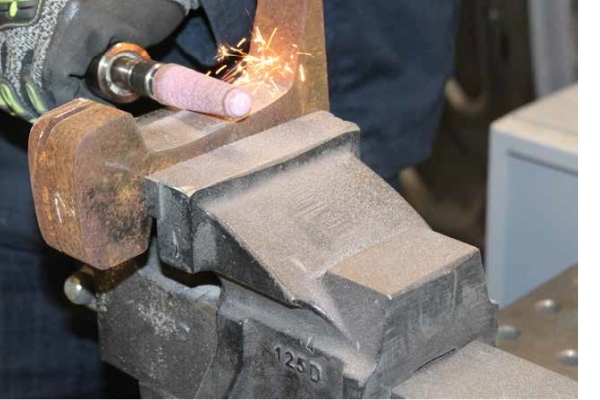

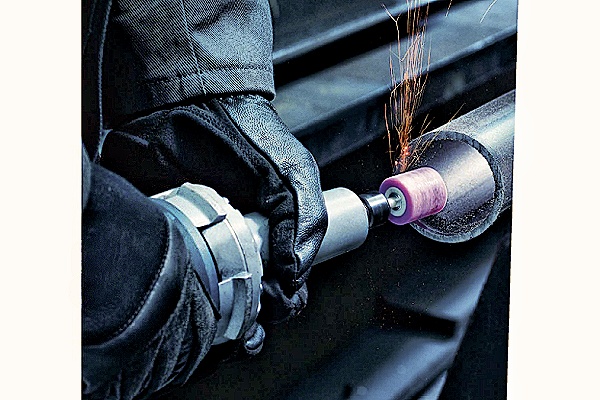

·Straight head is perfect for inner grinding and restricted spaces
·It is powerful with few breakdowns
·High durability, easy maintenance
Wheel to be used:
Official wheel, Vitrified wheel or Resinoid wheel with maximum peripheral usage speed(m/s) 33m/s or higher.
Maximum dimension(mm): Outside Ø38×Thickness 25×Shaft Ø6
Accessories: Collet chuck (Ø 6) 1pcs, Mounted wheel No.14 .15 each 1pcs, Spanner 1set

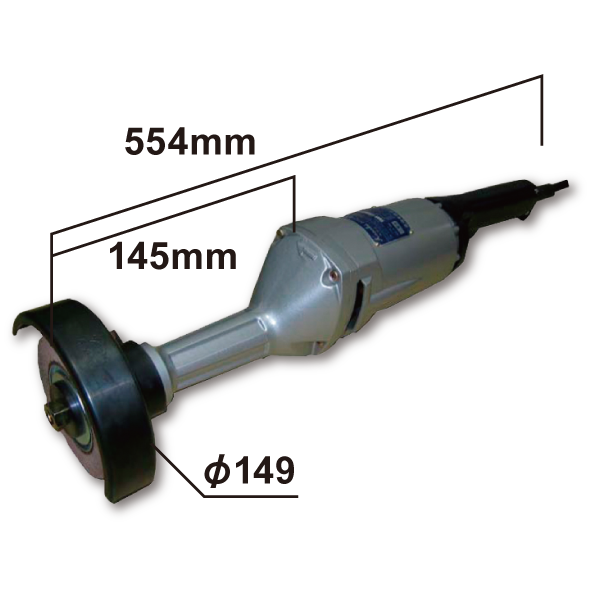

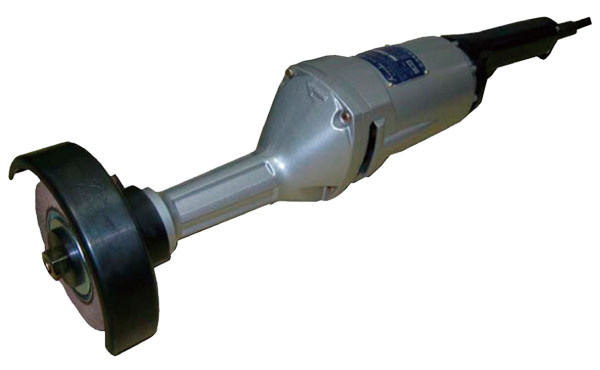

2. HIC-603: Flat wheels only Specification:
Wheel to be used: Flat wheels only, a collet chuck cannot be attached
Official wheel or Resinoid wheel with maximum peripheral usage speed(m/s) 50m/s or higher.
Maximum dimension(mm). Outside Ø 125× Thickness 19× Shaft Ø 12.7
Accessories: Spanner 1 set
Wheel to be used: Used Flat Wheel “RESINOX”, 25/38/50. Collet chuck (Ø 6) for Shafts are Optional, Sold separately
Official wheel or Resinoid reinforced wheel with maximum peripheral usage speed(m/s) 72m/s or higher.
Maximum dimension(mm). Outside Ø 75×Thickness 19× Shaft Ø 10
Accessories: Spanner 1 set, Side Handle 1pcs
Applications of Abrasives & Usage Notes:
| Model | Dimensions (Outer Dia.x thickness x hole Dia.) mm |
Speed (min⁻¹) |
Power Supply (3-phase AC) |
Current (A) |
Power Consumption (W) |
Weight (kg) |
Power Cord (m) |
Spindle Dimensions (mm) Dia. (Screw Pitch) x Length |

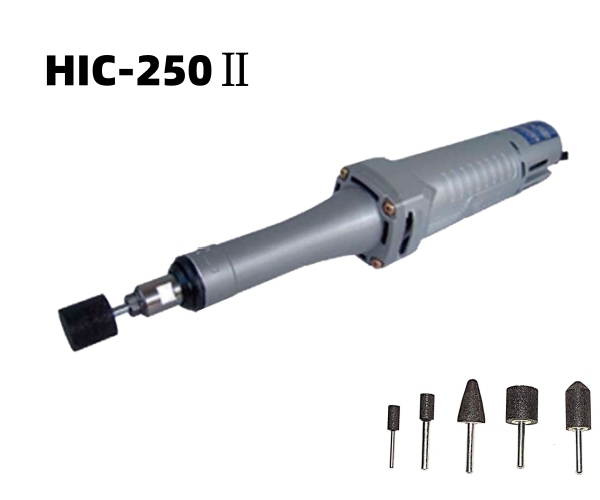

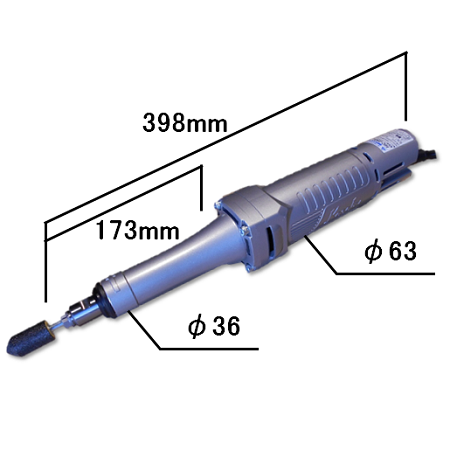

| HIC-250Ⅱ | Collet Chuck Mounted Wheel |
14000/15000 min⁻¹ | 240Hz/250Hz 200V | 2.4A | 500W | 2.1 KG | 5m | Collet Chuck Shaft Ø6 |
| HIC-603 | Ø125x 19 x Ø12.7 | 6960/7250 | 240Hz/250Hz 200V | 3.8A | 950W | 4.6 KG | 5m | Shaft Ø12.7 |
| HIC-802 | Ø75x 19 x M10 | 14000/15000 min⁻¹ | 240Hz/250Hz 200V | 4.8A | 1300W | 5 KG | 5m | Shaft M10(1.5) |
This product complies with the new Electrical Appliance and Material Safety Technology Standards (Noise Countermeasures)
revised by the Ministry of Economy, Trade and Industry Ordinance No. 57. Enforced on April 1, 2013.
