·Maximum cutting capabilities, capable of precision cutting
·Popular large cutter in the KCM series
·Clean cuts without producing dust, sparks, or smells
·Extremely quiet cutting noise
·Safe, good workability with low rotation speed
·Angle cutting is possible and fixed length cutting is possible
Material Application:
For general metal, stainless steel of various type, such as round pipe, round rod, squre pipe, angle steel, channel steel,etc.
 |
Advantage: ·Precision Metal Cutters are powerful and efficient ·Cutting surface is fine, free from burr or burnt and so precise as to save final finish ·Designed to be kind to environment with little noise and no dust ·Excellent operability，the switch on the side of the saw blade head ·Fixed length cutting is possible，accurately set the cutting dimension from 0 to 850 mm with the sizing and cutting device's 1 mm scale ·Angled cutting up to 45°right and left can be set in the scale of 1° increment on the guide plate ·Securely fasten the materials to be cut with the flexing prevention structure ·Prevents saw clogging with the unique chip remover Cutting cost and Speed Performance Comparation:  |
  |
Increase workability by using the sub-vise and machine table (sold separately) You can work with a more comfortable posture by setting the cutter on this table. It also features a convenient space to store saw blades and the included tools inside the table.  ( sub-vise) |
Applications of Abrasives & Usage Notes:

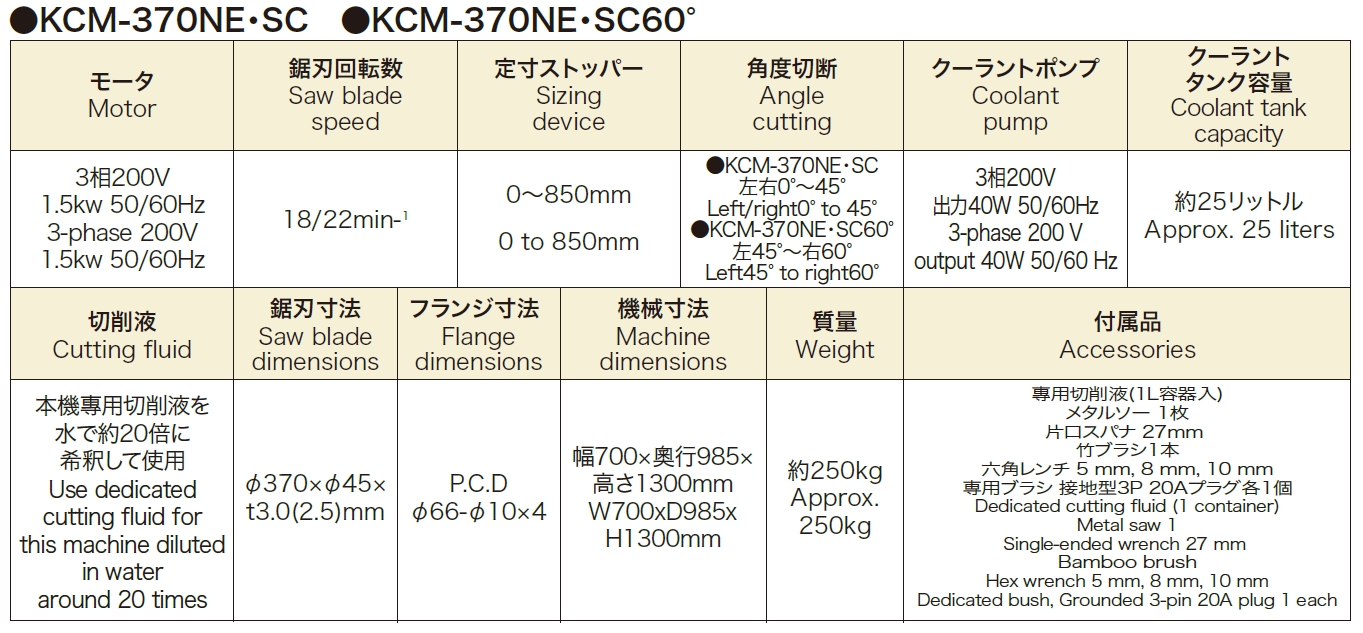

| Motor | Saw Blade Speed | Sizing Device | Angle Cutting | Coolant Pump | Coolant Tank Capacity | |
| 3-phase 200V 1.5kw 50/60HZ | 18/22 min | 0-850mm | ·KCM-370NE·SC：left/right 0-45° | 3-phase 200V output 40W 50/60HZ | Approx. 25 Liters | |
| ·KCM-370NE·SC60°： left 45°to right 60° |
||||||
| Cutting Fluid | Saw Blade Dimensions | Flange Dimensions | Machine Dimensions | Weight | Accessories | |
| Use dedicated cutting fluid for this machine diluted in water around 20 times | Ø370xØ45x t3.0(2.5)mm |
P.C.D Ø66-Ø10x4 |
W700 X D985 X H1300mm | Approx. 250kg | Dedicated cutting fluid (1 Container) Metal saw 1, Single-ended wrench 27 mm, Hex wrench 5 mm, 8 mm, 10 mm Dedicated bush, Grounded 3-pin 20A plug 1 each |
|
