Feature:
·Small and light weight, convenient but powerful
·Increased grinding efficiency with light thrusting force
·Easy to operate and has excellent stability
·Capable of using 72 m/s (4,300 m/min) peripheral speed wheels
Overview:

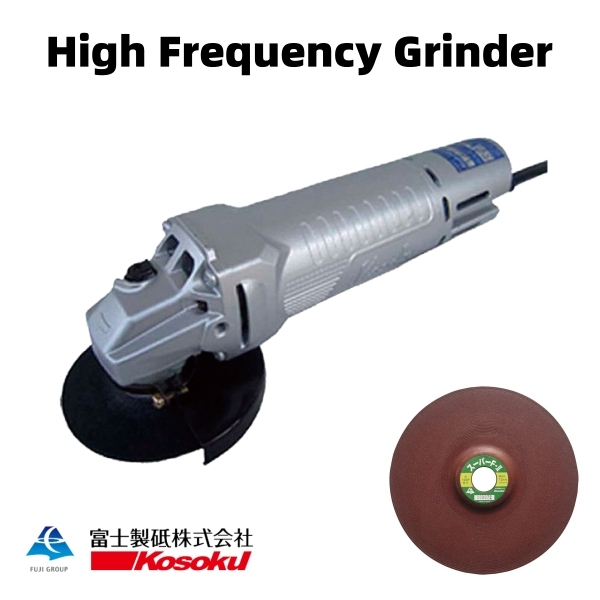

High Frequency Angle Grinder HGC-250Ⅱ: Grinding Efficiency Engineering Redefined
The HGC-250 High Frequency Grinder represents a paradigm shift in industrial grinding efficiency. Engineered , durability, and operational agility, this compact yet powerful tool is designed to meet the rigorous demands modern manufacturing and specialized machining applications.
Key Features & Technical Advantages:
1. Compact Design with Exceptional Power
Lightweight Construction: At 30% lighter than conventional grinders, the HGC-250Ⅱ ensures operator comfort during prolonged use without compromising structural integrity.
High-Speed Performance: Achieves peripheral wheel speeds of 72 m/s (4,300 m/min), enabling rapid material removal rates for hardened metals and composite materials.
2. Advanced Drive System
Three-Phase Squirrel Cage Induction Motor:
Delivers 240Hz/250Hz high-frequency output through a specialized generator or microcontroller inverter power supply.
Engineered for 0.5% speed variance under full load conditions.
Maintenance intervals extended by 40% compared to standard DC motor systems.
Why Choose HGC-250?
Productivity Gain: 22% cycle times vs. traditional 50Hz grinders
Cost Efficiency: 18% lower energy consumption per workpiece
Safety Compliance: JIS certification with emergency brake

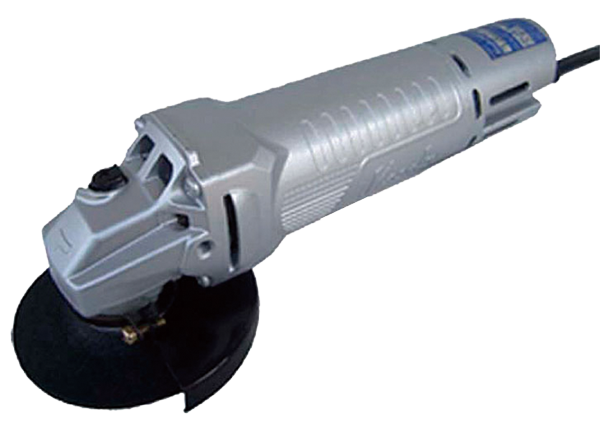

HGC-250Ⅱ High frequency grinders are small, lightweight, feature high speed, and use a three-phase squirrel cage induction motor with simple maintenance for the fewest breakdowns. Use a specialized high frequency generator to supply high frequencies of 240Hz/250Hz or a microcontroller-controlled inverter power supply. High frequency grinders are capable of using 72 m/s (4,300 m/min) peripheral speed wheels.

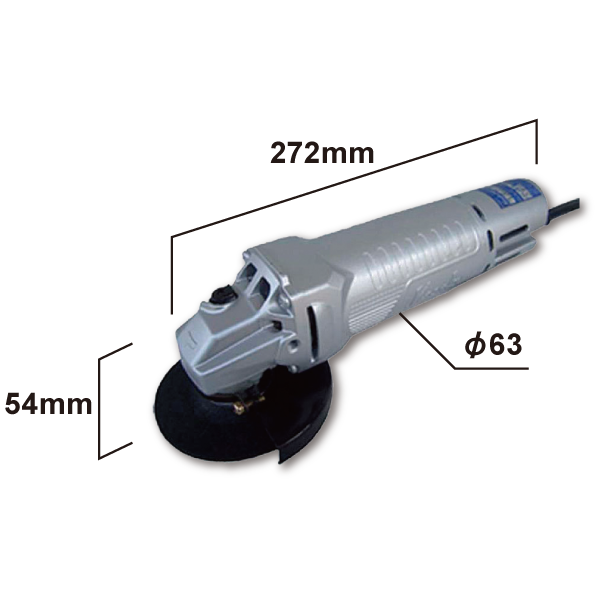

Size of HGC-250Ⅱ High Frequency Angle Grinder:
Compatible Wheel Diameter 100mm （Light Weight: 272mm(L)x54mm (D)
Specification of High Frequency Angle Grinder HGC-250Ⅱ:
| Model | Dimensions | Speed | Power Supply | Current | Power Consumption | Weight | Power Cord | Spindle Dimensions (mm) Dia. (Screw Pitch) x Length |
| (Outer Dia. x thickness x hole Dia.) mm | (min⁻¹) | 3-phase AC | (A) | (W) | (kg) | (m) | ||
| HGC-250Ⅱ | 100 x 6（4）x 15 | 8700/9000 | 240Hz/250Hz 200V | 2.4A | 500W | 2 KG | 5m | M10 (1.5) x 9 |
Note: When exported to other countries and regions, we will make corresponding changes according to the local power grid electricity standards for our equipment and tool, please contact us to confirm the details in advance.

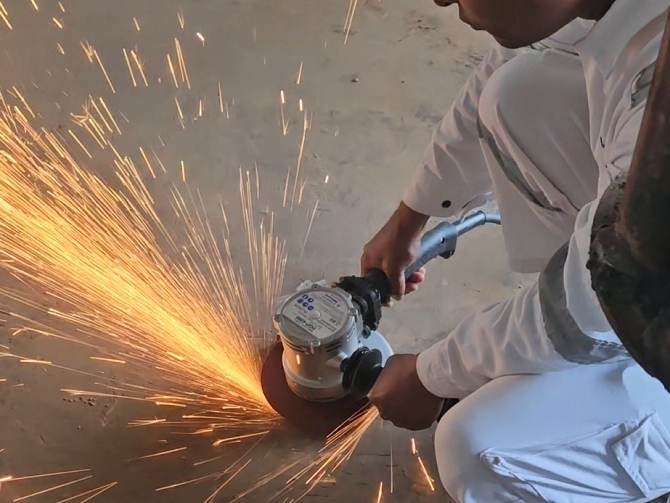

Industrial Applications:
Revolutionize Your Grinding Experience
The HGC-250 High-Frequency Angle Grinder combines with Fuji's efficient grinding wheels, with ergonomic design to deliver unmatched performance. Perfect for heavy-duty tasks, this grinder ensures efficiency, safety, and comfort—all in one compact tool.
· Metal Fabrications
· Ship Building

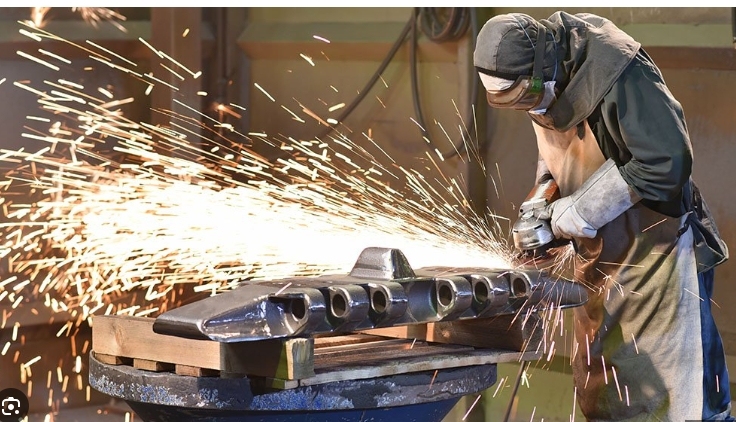

· Foundry
· Metal Working
Applications of Abrasives & Usage Notes:
| Model | Dimensions (Outer Dia.x thickness x hole Dia.) mm |
Speed (min⁻¹) |
Power Supply (3-phase AC) |
Current (A) |
Power Consumption (W) |
Weight (kg) |
Power Cord (m) |
Spindle Dimensions (mm) Dia. (Screw Pitch) x Length |
| HGC-250Ⅱ | 100 x 6（4）x 15 | 8700/9000 | 240Hz/250Hz 200V | 2.4A | 500W | 2 KG | 5m | M10 (1.5) x 9 |
| HGC-275 | 125x 6 x 22 | 8700/9000 | 240Hz/250Hz 200V | 2.4A | 500W | 2.2 KG | 5m | M16 (2.0) x 9.5 |
| HGC-300 | 125x 6 x 22 | 8200/9100 | 240Hz/250Hz 200V | 3.5A | 650W | 2.9 KG | 6m | M16 (2.0) x 9.5 |
This product complies with the new Electrical Appliance and Material Safety Technology Standards (Noise Countermeasures)
revised by the Ministry of Economy, Trade and Industry Ordinance No. 57. Enforced on April 1, 2013.
