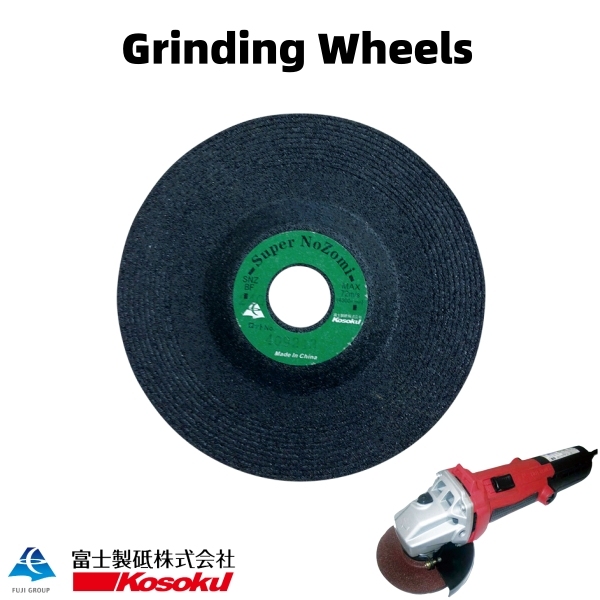

Top Quality Zirconia Grinding Wheels（Super Nozomi）

Name: Top Quality Zirconia Grinding Wheels（Super Nozomi）
Brand: fujigrindingwheel.com
SKU: Super Nozomi
Availability: InStock
Rating: 5 (1 reviews)

No.Super Nozomi

Features：

1. Zirconia Grain Technology:
· Superior Abrasiveness: Outperforms traditional alumina grains, ideal for hard materials like stainless steel, cast iron, and titanium.
· Self-Sharpening Action: Maintains cutting efficiency up to 30% longer, reducing downtime and costs.
· Heat Resistance: Withstands increased grinding temperatures, minimizing workpiece deformation.

2.Depressed Center Design
· Optimal Cooling: Reduces heat buildup for extended disc life.
· Balanced Operation: Ensures smooth, vibration-free grinding for enhanced control.
· Versatile Fit: Compatible with angle grinders (100mm–180mm) for handheld and industrial use.
3.Advanced Bonding Systems

Resin Bond: For high-speed grinding and aggressive material removal.

Technical Data about Nozomi:
100/125/180mm diameter, 6mm thickness, 22/22.23mm arbor hole, zirconia alumina abrasive, 24/36 grit, 72m/s, 4,300 RPM

Get The Latest Quote

Description
Instruction for Use
Cautions
Specifications

Overview:
Elevate your metalworking and fabrication projects with FUJI Premium Grinding Wheels--Super Nozomi, engineered to deliver unrivaled performance, durability, and precision. Our advanced zirconia grain technology combined with innovative depressed center design sets a new standard for industrial grinding.

Advantage:
· Grinding efficiency is prioritized in design
· Innovative heat dissipation structure achieves a continuous operating temperature of ≤65℃
· Amplitude control ≤2.5m/s², in line with ISO 15649 ergonomic
· Reinforced concave grinding wheel made of 27A grade abrasive
· Adopts ZrO₂ 40% composite abrasive, grinding ratio ≥35

Specification & Package:

Engineered to outlast, 100/125/180mm diameter, 6mm thickness, 22/22.23mm arbor hole, zirconia alumina abrasive, 24/36 grit, 72m/s, 4,300 RPM

Applications:
Perfect for grinding, deburring, and cutting various metals, including stainless steel, carbon steel, and alloys.

Why Choose FUJI?

Japanese Engineering: Precision manufacturing for consistent quality.
Global Trust: Used by professionals since 1953
Performance Warranty: Backed by FUJI’s 100% satisfaction guarantee.

About Us

Fuji Grinding Wheel is a leading manufacturer and supplier of industrial grinding solutions, specializing in high-performance grinding wheels, cut-off wheels, and abrasives. With years of expertise, advanced manufacturing technology, and a commitment to excellence, we provide precision-engineered abrasive solutions for industries such as metalworking, construction, automotive, and heavy industry.

Our mission is to enhance productivity and efficiency by offering top-quality grinding products that ensure safety, durability, and performance.

FUJI Headquarter in Japan
What Can You Buy from Us?

Depressed center grinding wheels/Discs
Cut-off wheels/Discs
Abrasive grinding wheels
Powerful angle grinder
Metal cut-off machines
High frequency Power Equipment

An instructional guide on the proper selection of abrasive wheels

Cautions:
· Do not exceed maximum R.P.M. marked on the wheels, never use sides of wheels for grinding or polishing, and make sure no chipping and
no cracks at the edges of wheels.
· Let the machine be idle for one minute before you start working. The machine must be idle for three minutes after you have changed the wheel.
· The materials to be cut must be fastened on the machine.
· Do not alter or change the metal center of the arbor hole if the size does not fit the machines.
· Always wear face and eye protection.
· Never remove protection guard from tools or machines.

Applications of Abrasives & Usage Notes:
Descriptions of marking symbols (abrasives) and their applications Usage Note about FUJI Abrasive Wheels

Product Name	Dimensions (Outer Dia.x thickness x hole Dia.)mm	Abrasives Grain	Grain Size	Hardness	Reinforcement	Package Qty (pcs)	Max. Peripheral Speed
Super Nozomi (JIS type)	100x6x15	SNZ	24·36	Q	BF	200(25x8)	72m/s (4.300m/min)
Super Nozomi	125x6x22	SNZ	24	Q	BF	100(25x4)
Super Nozomi	180x6x22	SNZ	24	N·O·Q	BF	50(10x5)
Super Nozomi (High Speed)	180x6x22.23	SNZ	24	O·Q	BF	50(10x5)	80m/s (4.800m/min)
*Note:* The 15mm diameter of hole(bore) can be modified into 16mm for export
