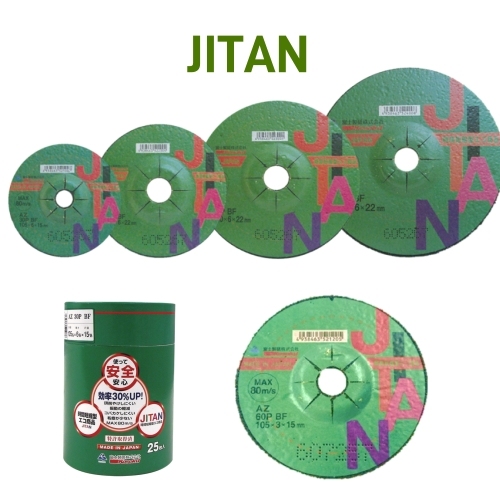

Name: High Productivity Versatile Grinding Wheels （JITAN）
Brand: fujigrindingwheel.com
SKU: JITAN-105/125mm
Availability: InStock
Rating: 5 (1 reviews)

Description
Instruction for Use
Cautions
Specifications

Advantage:

·Safety: No edge chipping if receiving impact during grinding workpieces at Max. peripheral usage speed Max80m/s
·Greatly reducing heat generation and reducing warpage of thin steel plates
·Reducing vibration rebounded on grinding, less vibration on hands! (Lower risk of vibration disease)
·Produce less dust on grinding (Lower risk of pneumoconiosis)
·Cost-efficient, High durability,less abrasion amount against grinding amount

Performance comparison between JITAN 105mm wheel and competitors' product

Grinding performance: JITAN VS OTHERS wheels for metal steel

Grinding performance: JITAN VS OTHERS wheels for stainless steel

Experience the ultimate grinding tool that you won't be able to put down! Designed with advanced fibre reinforcement, FUJI JITAN grinding wheels ensures unmatched safety and durability, preventing edge chipping even under heavy use. It significantly reduces heat generation and dust, making your grinding process cleaner and more efficient. With its innovative design, it minimizes vibration rebound, providing a smoother and more comfortable operation. Cost-efficient and built to last, it outperforms competitors with longer performance times and less abrasion, delivering more grinding power with less wear.

It will change the industry standard! Once you try it, it's hard to resist! Rolls-Royce product in grinding wheels! 4"/5"/6"/7" sizes are available.

High Productivity Versatile Grinding Wheels （JITAN)- product family

Low abrasion amount, but offer great grinding amount, longer lifespan,user-friendly.

Specification & Package:

Specs. of 125mm Jitan grinding wheel

Note: 1. ※ means made-to-order items, please contact us for more details
2. The 15mm diameter of hole(bore) can be modified into 16mm for export as request

An instructional guide on the proper selection of abrasive wheels

Cautions:
· Do not exceed maximum R.P.M. marked on the wheels, never use sides of wheels for grinding or polishing, and make sure no chipping and
no cracks at the edges of wheels.
· Let the machine be idle for one minute before you start working. The machine must be idle for three minutes after you have changed the wheel.
· The materials to be cut must be fastened on the machine.
· Do not alter or change the metal center of the arbor hole if the size does not fit the machines.
· Always wear face and eye protection.
· Never remove protection guard from tools or machines.

Applications of Abrasives & Usage Notes:
Descriptions of marking symbols (abrasives) and their applications Usage Note about FUJI Abrasive Wheels

Dimensions (Outer Dia.x thickness x hole Dia.)mm	Abrasives	Grain Size	Hardness	Reinforcement	Package Qty (pcs)	Max. Peripheral Speed
105x6x15	AZ	30	P	BF	200 (25x8)	80m/s （4,800m/min）
105x4x15		46
105x3x15		60
105x3x15		80
105x3x15		120
Note: The 15mm diameter of hole(bore) can be modified into 16mm for export as request
Dimensions (Outer Dia.x thickness x hole Dia.)mm	Abrasives	Grain Size	Hardness	Reinforcement	Package Qty (pcs)	Max. Peripheral Speed
125x6x22	AZ	30	P	BF	100 (25x4)	80m/s （4,800m/min）
125x4x22		46
125x3x22		60
125x3x22		80
125x3x22		120
Dimensions (Outer Dia.x thickness x hole Dia.)mm	Abrasives	Grain Size	Hardness	Reinforcement	Package Qty (pcs)	Max. Peripheral Speed
150x6x22	AZ	30	P	BF	100 (25x4)	80m/s （4,800m/min）
150x4x22		46
150x3x22		60
150x3x22		80
150x3x22		120
Dimensions (Outer Dia.x thickness x hole Dia.)mm	Abrasives	Grain Size	Hardness	Reinforcement	Package Qty (pcs)	Max. Peripheral Speed
180x6x22	AZ	30	P	BF	100 (25x4)	80m/s （4,800m/min）
180x4x22		46
180x3x22		60
180x3x22		80
180x3x22		120
*180x6x22.23		30			80 (20x4)
